RZFD-250 roll feeding square bottom paper bag machine
Rolling feed square bottom paper bag making machine, it uses paper roll in blank or printed as raw material. consists of automatic center forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming, finished bag collecting one time,The machine is more convenient, more efficient, more stable, can produce a variety of different paper bags, leisure food bags, bread bags, dried fruit bags and so on environmentally friendly paper bag machine equipment.
Classification：
Keyword：
E-mail: sales@wzruizhi.com
- 产品描述
- Parameter
- Configuration
- Details
- Sample Bag
- Video
-
- Commodity name: RZFD-250 roll feeding square bottom paper bag machine
- Commodity ID: RZFD-250
Rolling feed square bottom paper bag making machine, it uses paper roll in blank or printed as raw material. consists of automatic center forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming, finished bag collecting one time,The machine is more convenient, more efficient, more stable, can produce a variety of different paper bags, leisure food bags, bread bags, dried fruit bags and so on environmentally friendly paper bag machine equipment.
-
Model
RZFD-250

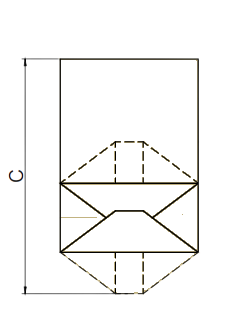

Cut bag length
240—470mm
9.8—18.5 in

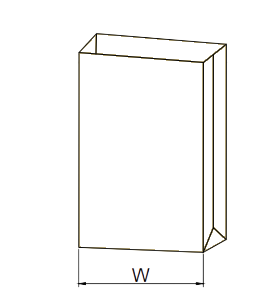

Paper bag width
110—250mm
4.3—9.8 in

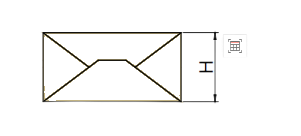

Paper bag bottom width
60—150mm
2.4—5.9 in

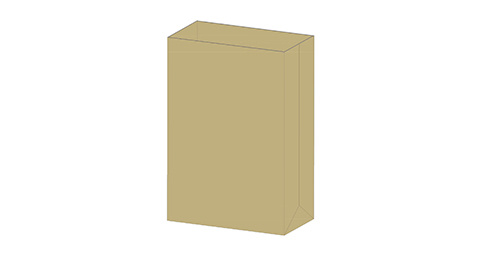

Planar graph
Paper thickness
50—150g/㎡
Machine Speed
30-260pcs/min
Paper bag speed
30-230pcs/min
Paper roll width
370—830mm
14.6—32.7 in
Roll paper diameter
Φ1300mm
Φ51 in
Inner diameter of paper
Φ76mm
Φ3 in
Bottom folding type
Cutting knife
Sawtooth cutting
Machine power
380V 3（phase)4（wire) 15KW
Total weight
8500kg
Machine Dimesion
10000x3700x2200mm
394X146X87 in
-
1. Adopt France/SCHNEIDER touch screen human-computer interface, operate and control easily.
2.Adopt Germany original REXROTH PC control, Integrated with optical fiber, ensure high speed running steadily.
3. Germany original REXROTH servo motor and German original SICK Photoelectric eye correction, tracking printing bag accurately.
4.Raw material load adopt pneumatic cylinder up and down structure, unwinding adopt auto tension control.
5.Raw material unwinding EPC adopt italy SELECTRA, reduce adjustment time.
Control System
Name
QTY
Country
Brand
PC Program Controller
1
Germany
REXROTH
Human computer touch screen interface
1
France
Schneider
Traction servo motor and servo driver
1
Germany
REXROTH
Host servo motor and servo driver
1
Taiwan
DELTA
Chasing The Photoelectric Eye
1
Germany
SICK
Low Voltage Electrical Apparatus
1
US
EATON
Pneumatic component
1
Taiwan
AirTAC
Auto lubricating
1
China
RUIZHI
Air conditioner for electric control box
1
China
RUIZHI
Deviation correction and tension control system
Name
QTY
Country
Brand
EPC Controller
1
Italy
SELECTRA
Servo EPC Motor
1
Italy
SELECTRA
Ultrasonic Sensor
1
Italy
SELECTRA
Magnetic Powder Brake
1
China
WEIZHENG
Feeding hydraulic cylinder
1
China
RUIZHI
Transmission
Name
Qty
Country
Brand
Synchronous Belt
1
China
BELDI
6061 Aluminum alloy synchronous wheel
1
China
RUIZHI
Bearing
1
Germany
FALA
6061 Aluminum alloy guide roller
1
China
RUIZHI
Pig-iron / carburizing steel gear
1
China
RUIZHI
Roll Pneumatic Shaft
1
China
RUIZHI
Glue position
Name
Qty
Country
RUIZHI
Side glue ratio valve
1
China
DELIXI
center-sealing glue gun for water-based glue
1
China
XLG
White Latex Pneumatic Glue Barrel
1
China
RUIZHI
Glue Glue Position Detection
1
Switzerland
BAUMER
Note:The purchased parts used in this machine will be replaced by the same-level brand that is not lower than the existing brand quality when the equipment is upgraded or updated. The seller will reserve the right without further notice.
-
-
