RZFD-550 roll feeding square bottom paper bag machine
Rolling feed square bottom paper bag making machine, it uses paper roll in blank or printed as raw material. consists of automatic center forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming, finished bag collecting one time,The machine is more convenient, more efficient, more stable, can produce a variety of different paper bags, leisure food bags, bread bags, dried fruit bags and so on environmentally friendly paper bag machine equipment.
Classification：
Keyword：
E-mail: sales@wzruizhi.com
- 产品描述
- Parameter
- Configuration
- Details

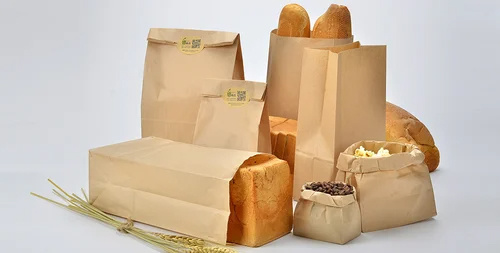

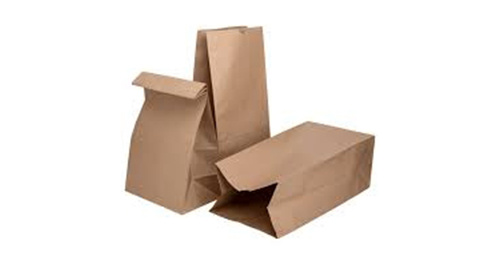

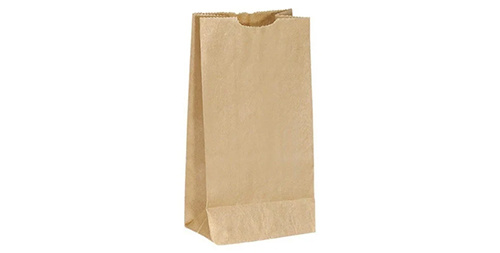

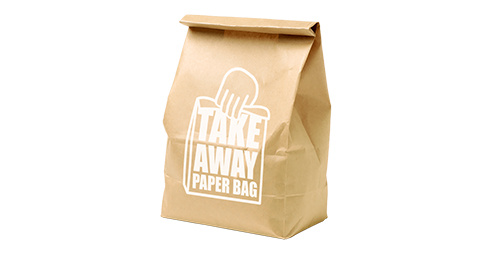

- Sample Bag
- Video
-
- Commodity name: RZFD-550 roll feeding square bottom paper bag machine
- Commodity ID: RZFD-550
Rolling feed square bottom paper bag making machine, it uses paper roll in blank or printed as raw material. consists of automatic center forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming, finished bag collecting one time,The machine is more convenient, more efficient, more stable, can produce a variety of different paper bags, leisure food bags, bread bags, dried fruit bags and so on environmentally friendly paper bag machine equipment.
-
Model
RZFD-550
Cut bag length
380—760mm
15—29.9 in
Paper bag width
240—550mm
10.2—21.7 in
Paper bag bottom width
120—300mm
3.9—9.1 in
Planar graph
Paper thickness
100—150g/㎡
Machine Speed
30-100pcs/min
Paper bag speed
30-120pcs/min
Paper roll width
740—1730mm
32.7—61.8 in
Roll paper diameter
Φ1300mm
Φ51 in
Inner diameter of paper
Φ76mm
Φ3 in
Bottom folding type
Cutting knife
Sawtooth cutting
Machine power
380V 3（phase) 4（wire) 25KW
Total weight
10000kg
Machine Dimesion
12000x4200x2200MM
472X165X87 in
-
Main features
1. Adopt France/SCHNEIDER touch screen human-computer interface, operate and control easily.
2.Adopt Germany original REXROTH PC control, Integrated with optical fiber, ensure high speed running steadily.
3. Germany original REXROTH servo motor and German original SICK Photoelectric eye correction, tracking printing bag accurately.
4.Raw material load adopt pneumatic cylinder up and down structure, unwinding adopt auto tension control.
5.Raw material unwinding EPC adopt italy SELECTRA, reduce adjustment time.
The main features of flexo printing
1.The ink is transported by a separate gear motor, and the ink pump circulates the ink.
2.Use a closed scraper to scrape ink, ensure high-speed printing and prevent ink splash.
3.Pneumatic lift and drop mode, automatically start after shutdown, automatically transport ink after printing plate installation,Printing plate automatic printing after booting.
4.Independent closed type hot and cold dual function drying syst.
Control System
Name
QTY
Country
Brand
PC Program Controller
1
Germany
REXROTH
Human computer touch screen interface
1
France
Schneider
Traction servo motor and servo driver
1
Germany
REXROTH
Host servo motor and servo driver
1
Taiwan
DELTA
Chasing The Photoelectric Eye
1
Germany
SICK
Low Voltage Electrical Apparatus
1
US
EATON
Pneumatic component
1
Taiwan
AirTAC
Auto lubricating
1
China
RUIZHI
Air conditioner for electric control box
1
China
RUIZHI
Deviation correction and tension control system
Name
QTY
Country
Brand
EPC Controller
1
Italy
SELECTRA
Servo EPC Motor
1
Italy
SELECTRA
Ultrasonic Sensor
1
Italy
SELECTRA
Magnetic Powder Brake
1
China
WEIZHENG
Feeding hydraulic cylinder
1
China
RUIZHI
Transmission
Name
Qty
Country
Brand
Synchronous Belt
1
China
BELDI
6061 Aluminum alloy synchronous wheel
1
China
RUIZHI
Bearing
1
Germany
FALA
6061 Aluminum alloy guide roller
1
China
RUIZHI
Pig-iron / carburizing steel gear
1
China
RUIZHI
Roll Pneumatic Shaft
1
China
RUIZHI
Glue position
Name
Qty
Country
RUIZHI
Side glue ratio valve
1
China
DELIXI
center-sealing glue gun for water-based glue
1
China
XLG
White Latex Pneumatic Glue Barrel
1
China
RUIZHI
Glue Glue Position Detection
1
Switzerland
BAUMER
Note:The purchased parts used in this machine will be replaced by the same-level brand that is not lower than the existing brand quality when the equipment is upgraded or updated. The seller will reserve the right without further notice.
-
-
