RZFD-250T with twisted handle inline
Fully automatic square bottom paper bag machine is designed for the production of paper bags with twisted handles. It is suitable for mass production of shopping bags in industries such as food and clothing. The one-line process consists of twisted handles making from paper rolls and twisted rope, delivery of handles to paste unit, pre-cutting of paper on position of rope, patch position gluing, handle pasting, and paper bag making. The paper bag making process consists of side gluing, tube forming, cutting, creasing, bottom gluing, bottom forming and bag delivery. This machine adopts German imported high-speed motion controller (CPU), which controls the operation of servo through high-speed bus to ensure stable movement and smooth motion curve. It is the automatic square bottom paper bag equipment with handles inline preferred by the majority of printing and packaging manufacturers.
Classification：
Keyword：
E-mail: sales@wzruizhi.com
- 产品描述
- Parameter
- Configuration
- Details

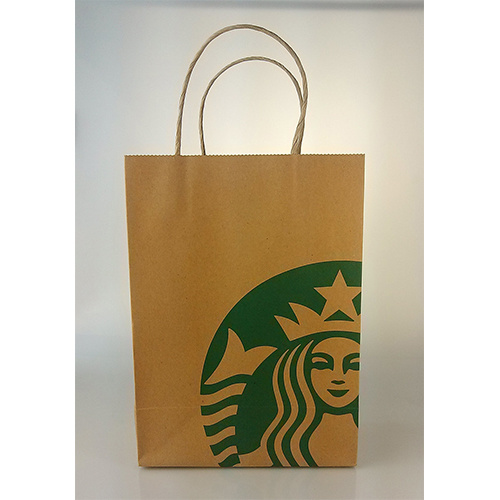

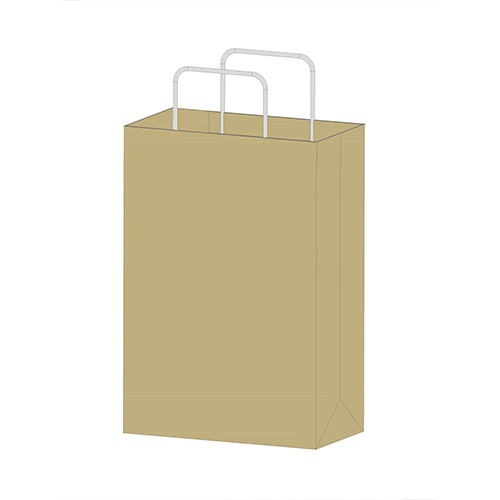

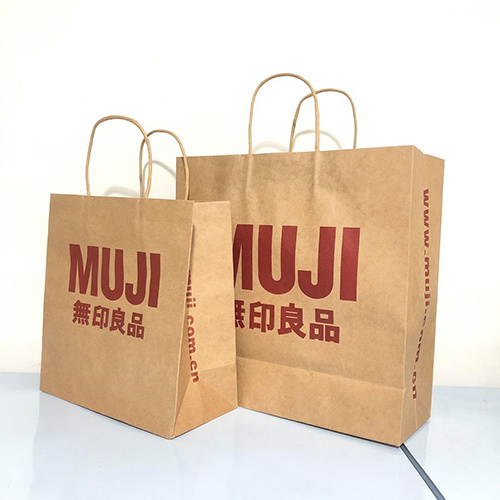

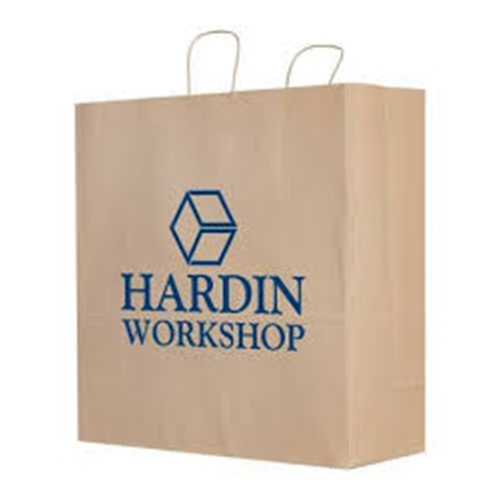

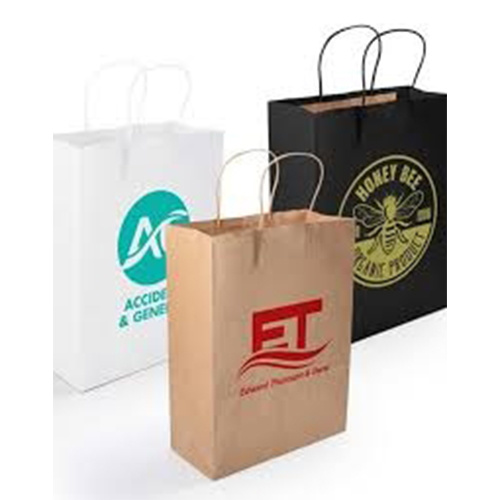

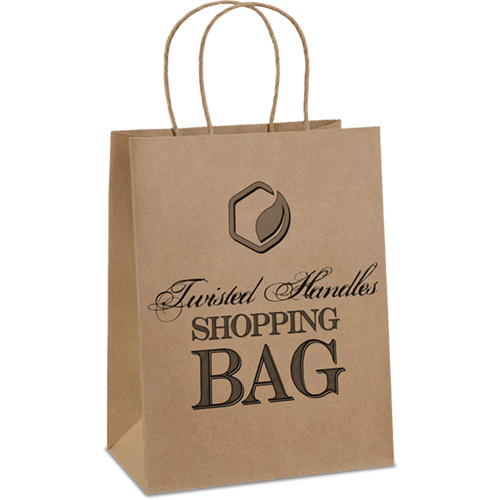

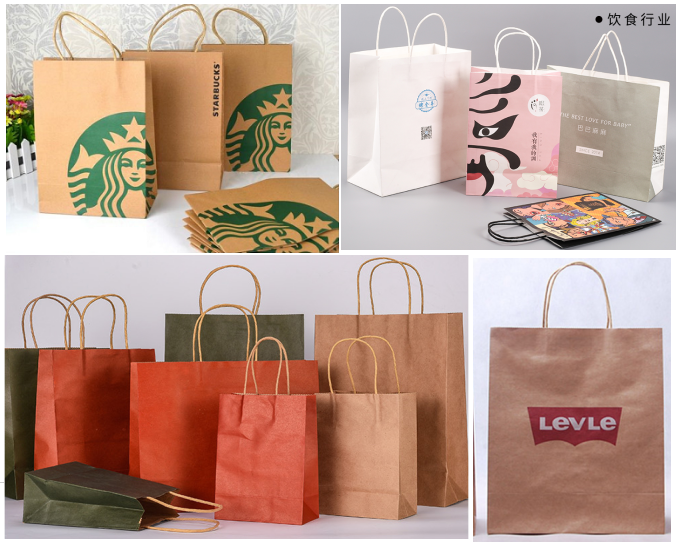

- Sample Bag
- Video
-
- Commodity name: RZFD-250T with twisted handle inline
- Commodity ID: RZFD-250T
Fully automatic square bottom paper bag machine is designed for the production of paper bags with twisted handles. It is suitable for mass production of shopping bags in industries such as food and clothing. The one-line process consists of twisted handles making from paper rolls and twisted rope, delivery of handles to paste unit, pre-cutting of paper on position of rope, patch position gluing, handle pasting, and paper bag making. The paper bag making process consists of side gluing, tube forming, cutting, creasing, bottom gluing, bottom forming and bag delivery. This machine adopts German imported high-speed motion controller (CPU), which controls the operation of servo through high-speed bus to ensure stable movement and smooth motion curve. It is the automatic square bottom paper bag equipment with handles inline preferred by the majority of printing and packaging manufacturers.
-
Model
RZFD--250T
Cutting length
240-470mm
Cutting length
240-370mm
Bag width
110-250mm
Bag width
120-250mm
Bottom width
60-150mm
Paper Thickness
50-150g/㎡
Paper Thickness
80-150g/㎡
Paper roll width
370-830m
Paper roll width
380-830mm
Roll paper diameter
ф1300mm
Paper core
ф76mm
Patch length
95mm
Patch paper roll width
80-100mm
patch width
40-50mm
patch paper roll diameter
ф1200mm
Handle distance
55mm
patch paper thickness
100-135g/㎡
Rope diameter
Ф3-5mm
Mechanical speed
30-150bags/min
Bottom folding type
Cutting knife
Sawtooth cutting
Power Supply
380V 3Phase
41.5KW
Machine weight
15000kg
Machine size
14000x6000x2400mm
-
1.Use France SCHNEIDER touch screen human-computer interface, making the machine easy to operate and control.
2.Adopt Germany original LENZE PC control, integrated with optical fiber. Thus ensure stable and high speed running.
3.Adopt Germany original LENZE servo motor and German original SICK photoelectric eye correction, tracking printing bag accurately.
4. Raw material loading adopts hydraulic auto-lifting structure. Unwind unit adopts auto tension control.
5.Raw material unwinding EPC adopts Italy SELECTRA, reducing material alignment time.
Control System
Name
QTY
Original
Brand
CPU Program Controller
1
Germany
LENZE
PLC Power module
1
Germany
LENZE
PLC Input module
4
Germany
LENZE
PLC High Speed capture Module
2
Germany
LENZE
PLC output module
3
Germany
LENZE
PLC analog output module
1
Germany
LENZE
PLC Authorization card
1
Germany
LENZE
Main power filter
1
Germany
LENZE
Human-computer touch screen interface
1
France
SCHNEIDER
Servo Motor
8
Germany
LENZE
Servo Motor Reducer
8
Germany
STOBER
Servo driver
4
Germany
LENZE
Bag forming frequency converter
1
Switzerland
ABB
伺服电源Bag forming motor
1
Germany
Lenze
Photoelectric eye for printed-bag tracking
1
Germany
SICK
Low voltage electrical apparatus
1
Germany
EATON
光电传感器
Photoelectric sensor
1
Switzerland
BAUMER
Pneumatic component
1
Taiwan
Auto lubricating
China
Air conditioner for electric control box
1
China
Deviation correction and tension control system
Name
QTY
Original
Brand
EPC controller
1
Italy
SELECTRA
Servo motor for EPC
1
Italy
SELECTRA
Ultrasonic sensor
1
Italy
SELECTRA
Magnetic powder brake
1
taiwan
WEIZHENG
Automatic Tension System of Magnetic Powder
1
China
Automatic Hydraulic Feeding Motor
1
China
Feeding hydraulic cylinder
1
China
Transmission
Name
Qty
Original
MTED
Synchronous belt
China
BELDI
Synchronous wheel
China
MTED
Bearing
德国
Germany
FALA
Guide roller
中国
China
BAIXIAO
Gear
China
MTED
Glue position
Name
Qty
Original
MTED
Bottom glue (bottom-sealing white latex)
1
China
MTED
Motor for bottom glue evening
2
China
Pneumatic auto glue filling valve
3
China
Glue Glue Position Detection
1
Switzerland
BAUMER
Spraying gun for center sealing (dense adjust Glue gun )
1
China
MTED
High-pressure glue barrel for white latex
2
China
MTED
Handle Pasting Unit
Name
Qty
Original
MTED
EPC controller
2
Italy
SELECTRA
Servo motor for EPC
2
Italy
SELECTRA
Ultrasonic sensor
2
Italy
SELECTRA
Hot Melt Glue Device
1
China
RUIZHI
Hot Melt Glue Gun
2
China
RUIZHI
Hot Melt Glue Gun
2
China
RUIZHI
Note:The purchased parts used in this machine will be replaced by the same-level brand that is not lower than the existing brand quality when the equipment is upgraded or updated. The seller will reserve the right without further notice.
-
-
