RZFD-330IF Roll-fed fully-auto square bottom paper bag machine With (Infolding flat handle inline)

This machine is designed to manufacture square bottom paper bags with handle (infolding or exposed) from paper roll, paper patch roll and paper rope, it is an ideal machine to make paper shopping bag. This machine is also able to make square bottom paper bag without handle in a higher speed. By implementing steps including handle making, tube cutting, and bottom forming within a fully automatic process, this machine can effectively save labor cost.

Classification：

Square Bottom Paper Carry Bag Machine

Keyword：

Message

E-mail: sales@wzruizhi.com

产品描述
Parameter
Configuration
Details

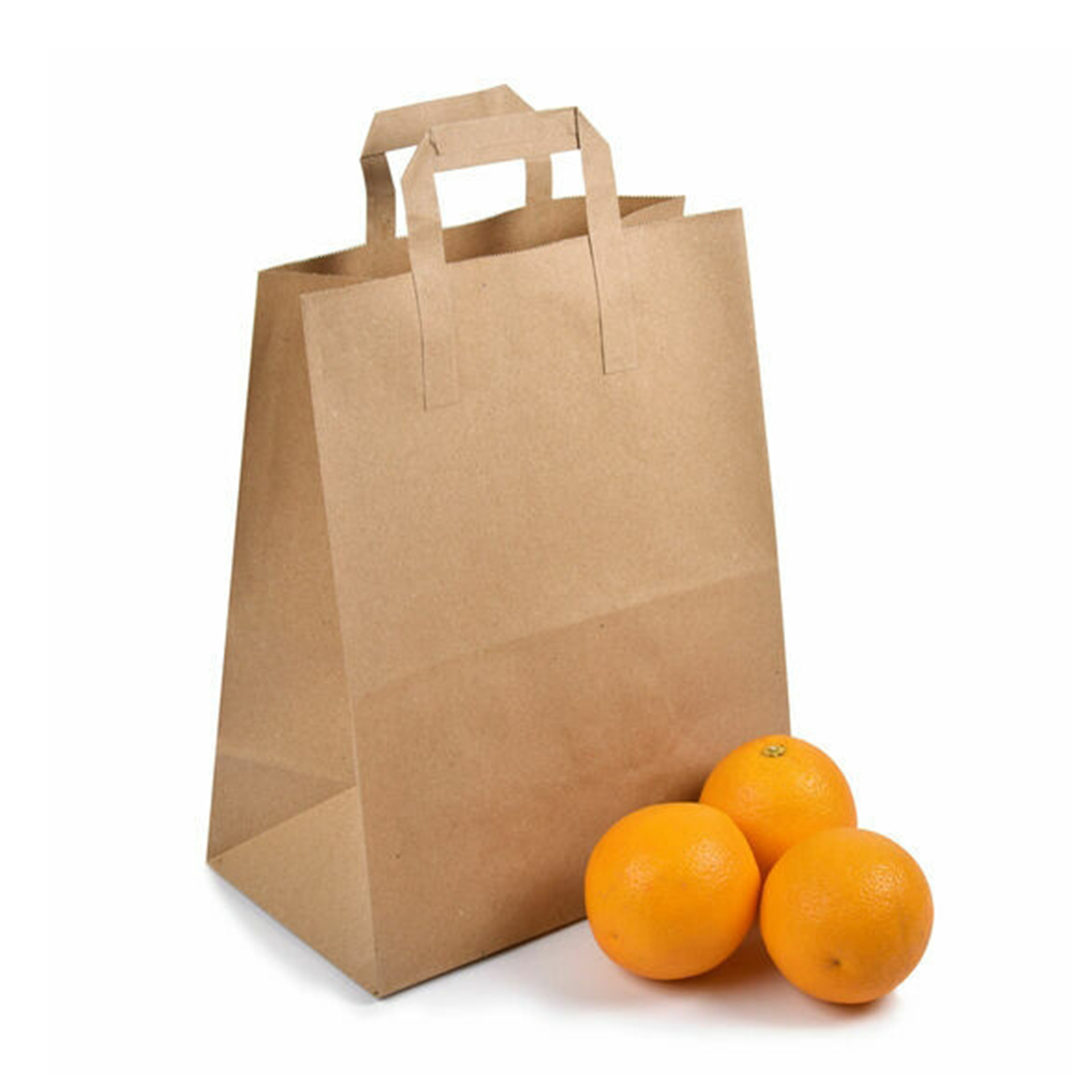

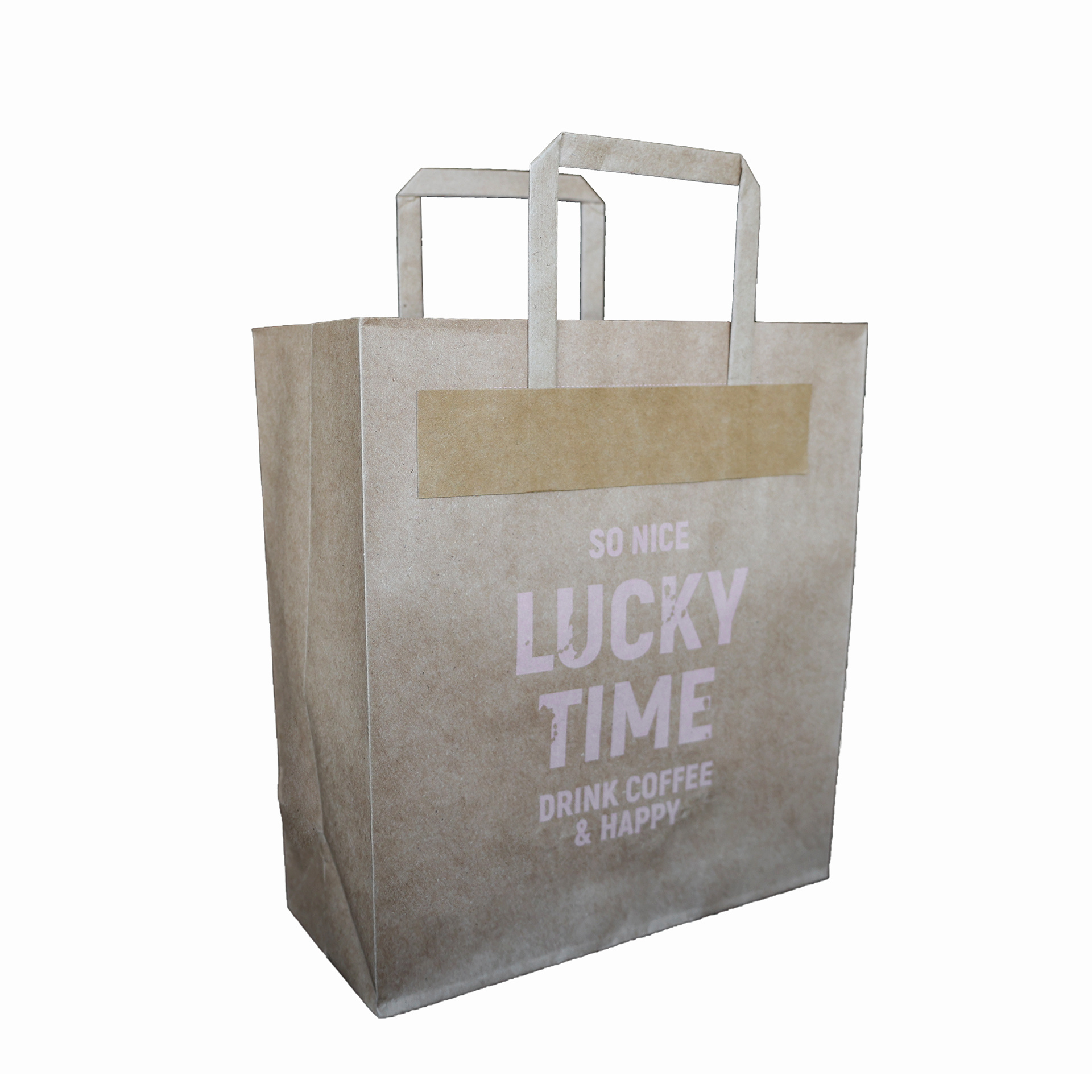

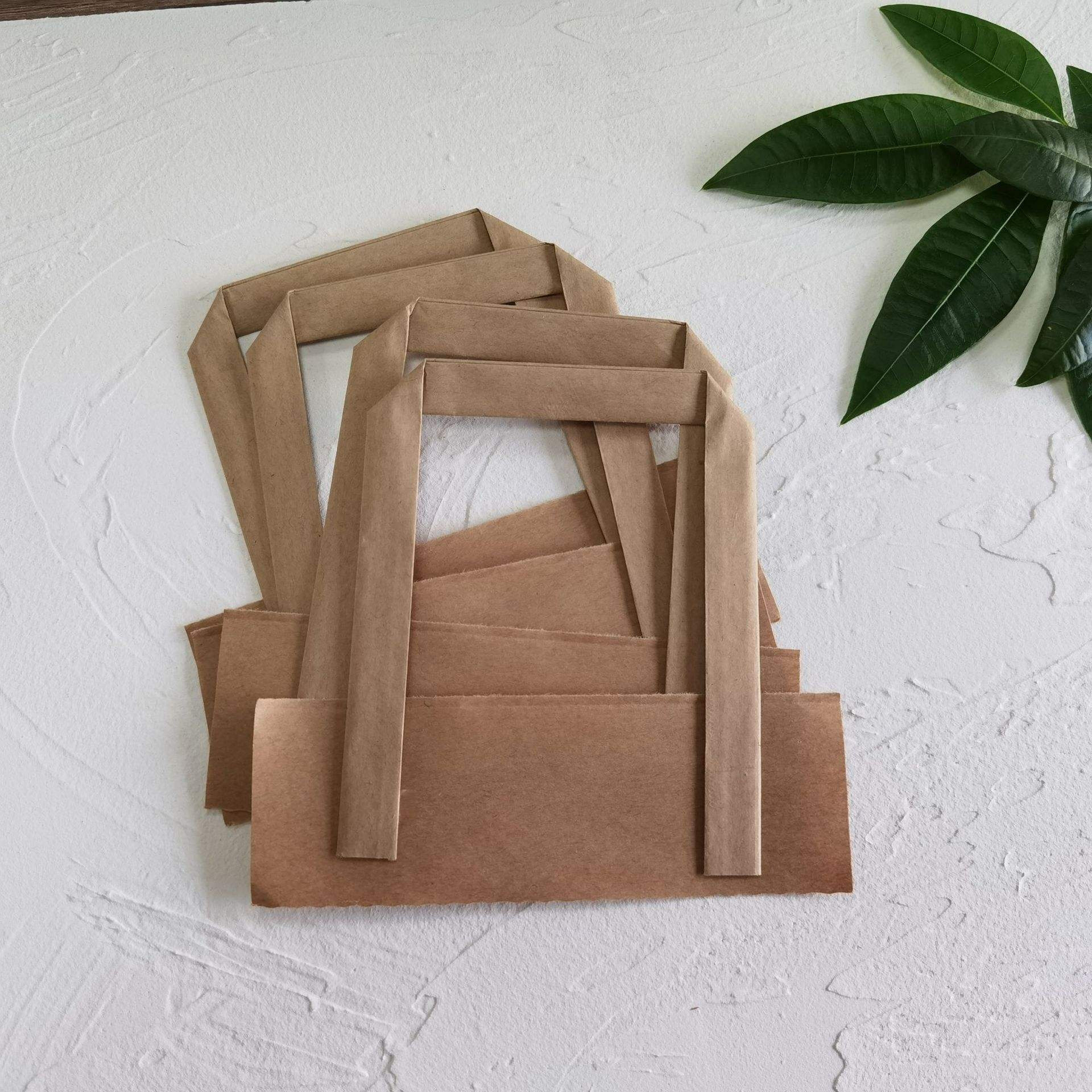

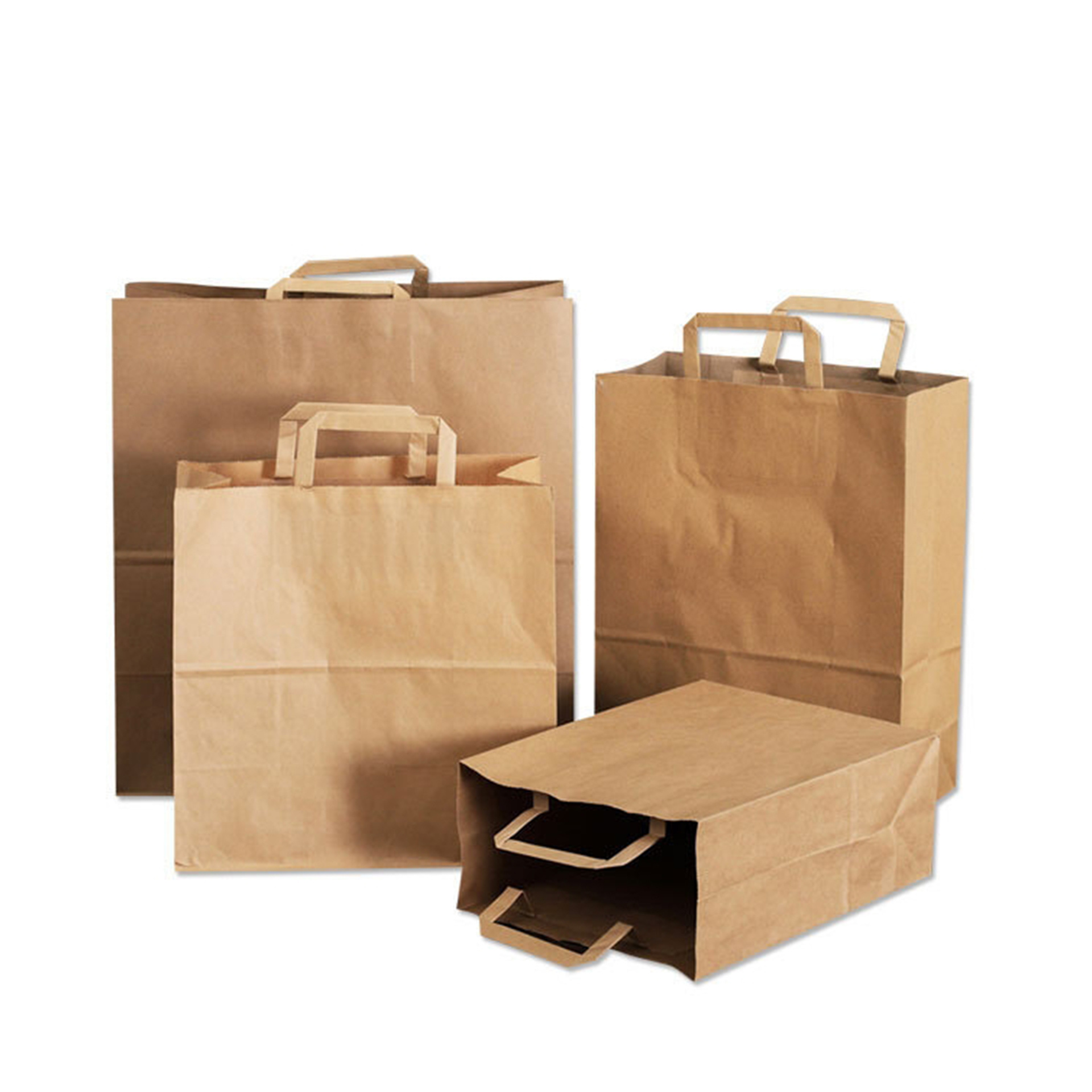

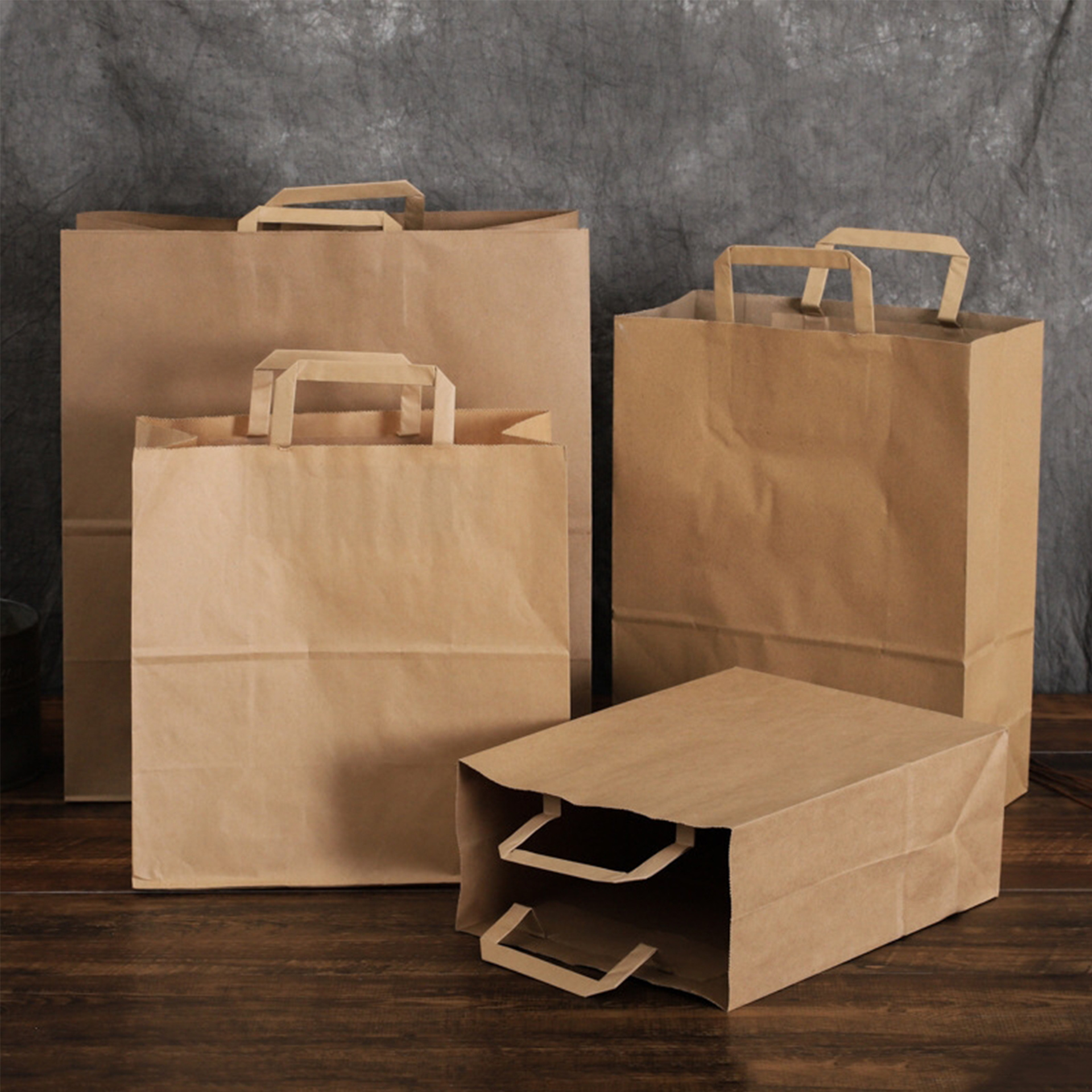

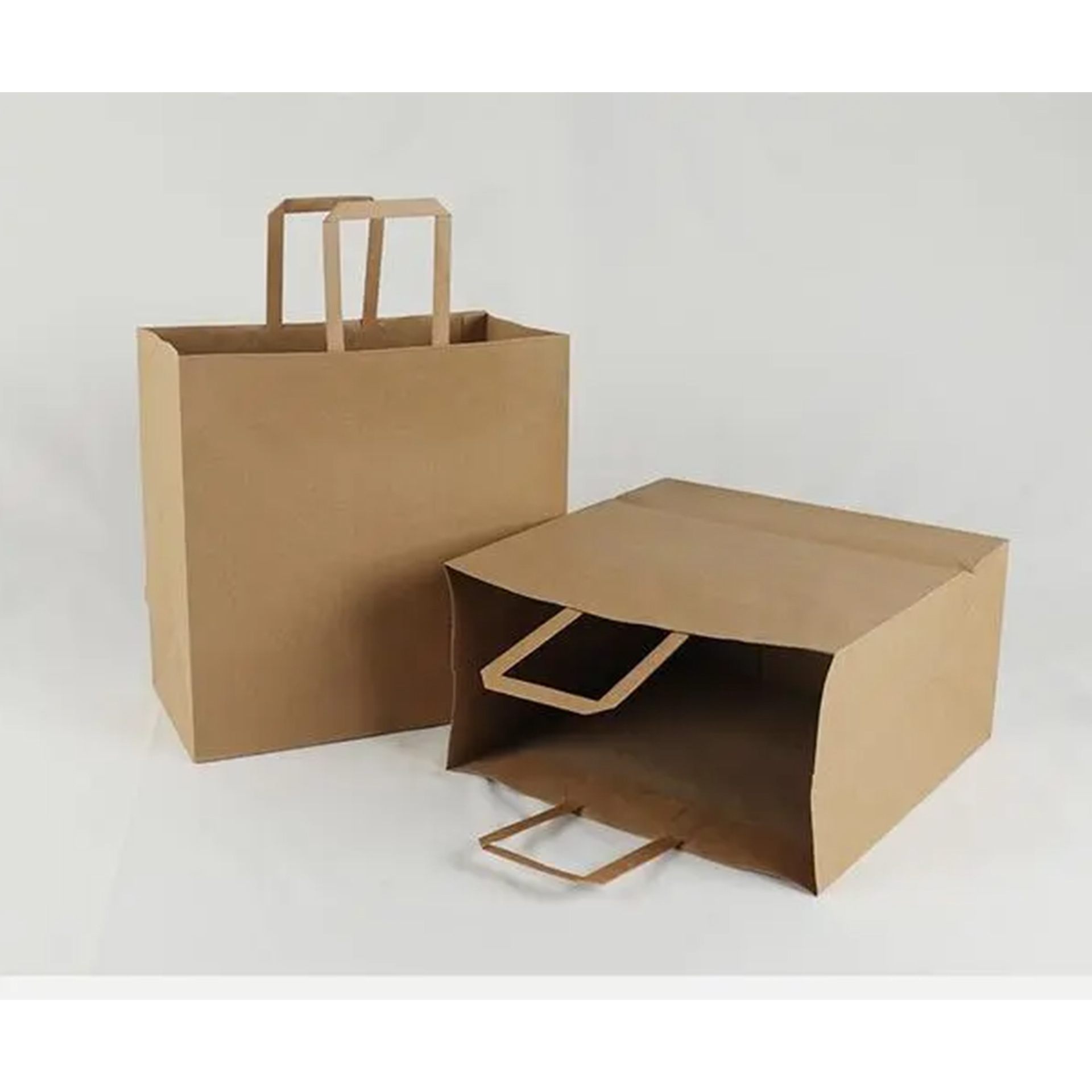

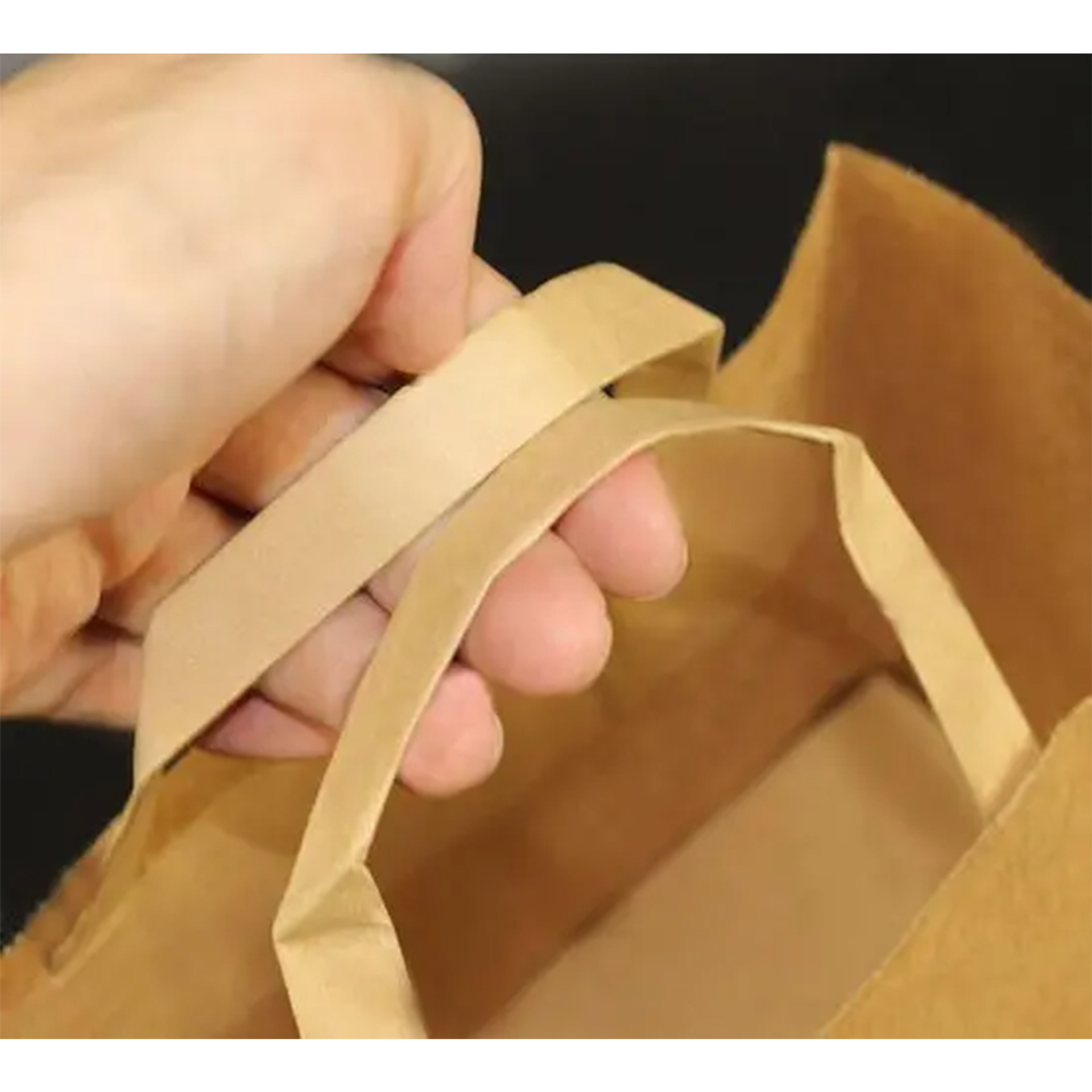

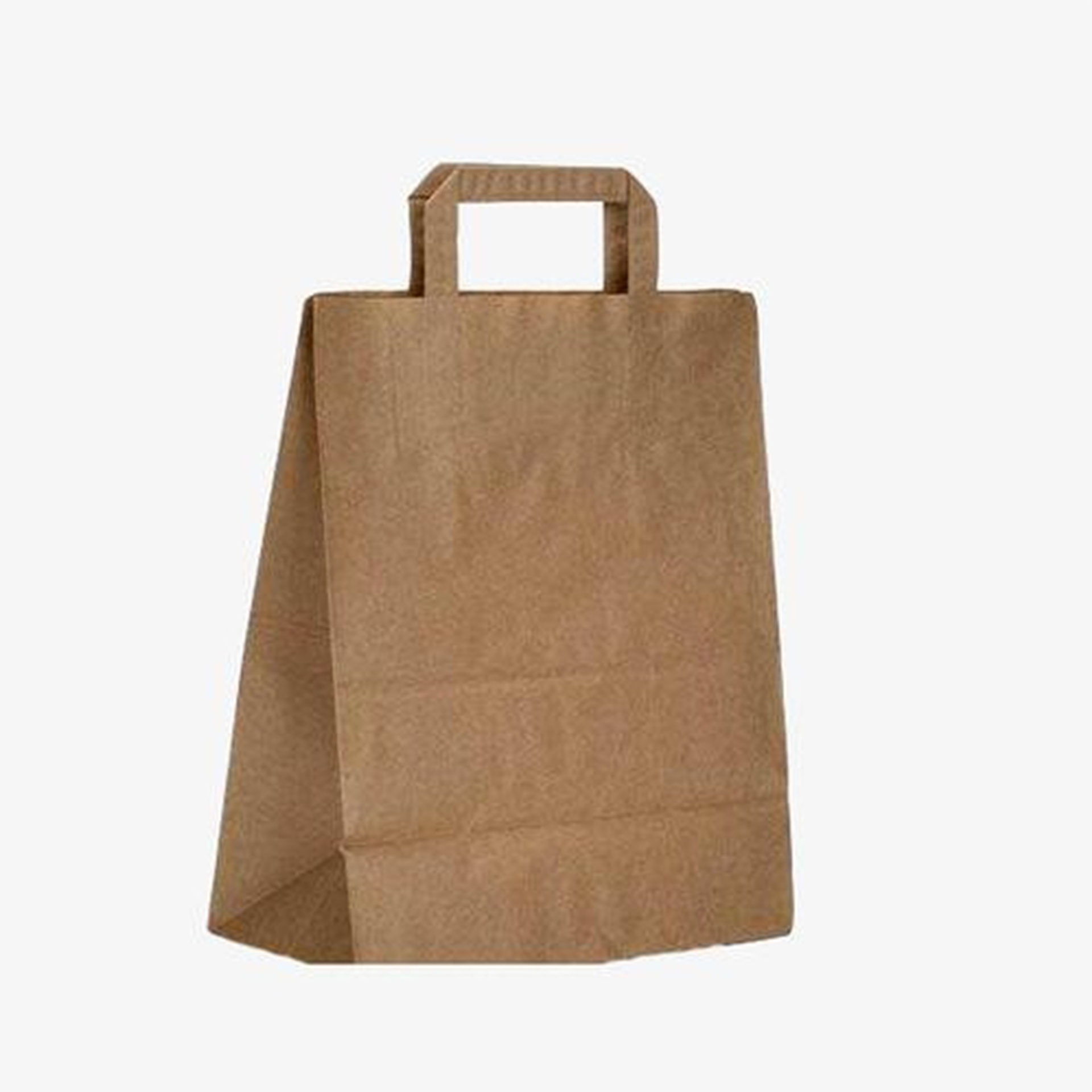

Sample Bag
Video

- Commodity name: RZFD-330IF Roll-fed fully-auto square bottom paper bag machine With (Infolding flat handle inline)
- Commodity ID: RZFD-330IF
This machine is designed to manufacture square bottom paper bags with handle (infolding or exposed) from paper roll, paper patch roll and paper rope, it is an ideal machine to make paper shopping bag. This machine is also able to make square bottom paper bag without handle in a higher speed. By implementing steps including handle making, tube cutting, and bottom forming within a fully automatic process, this machine can effectively save labor cost.

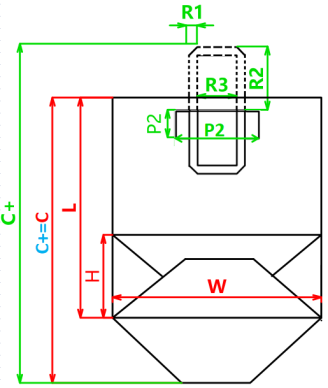

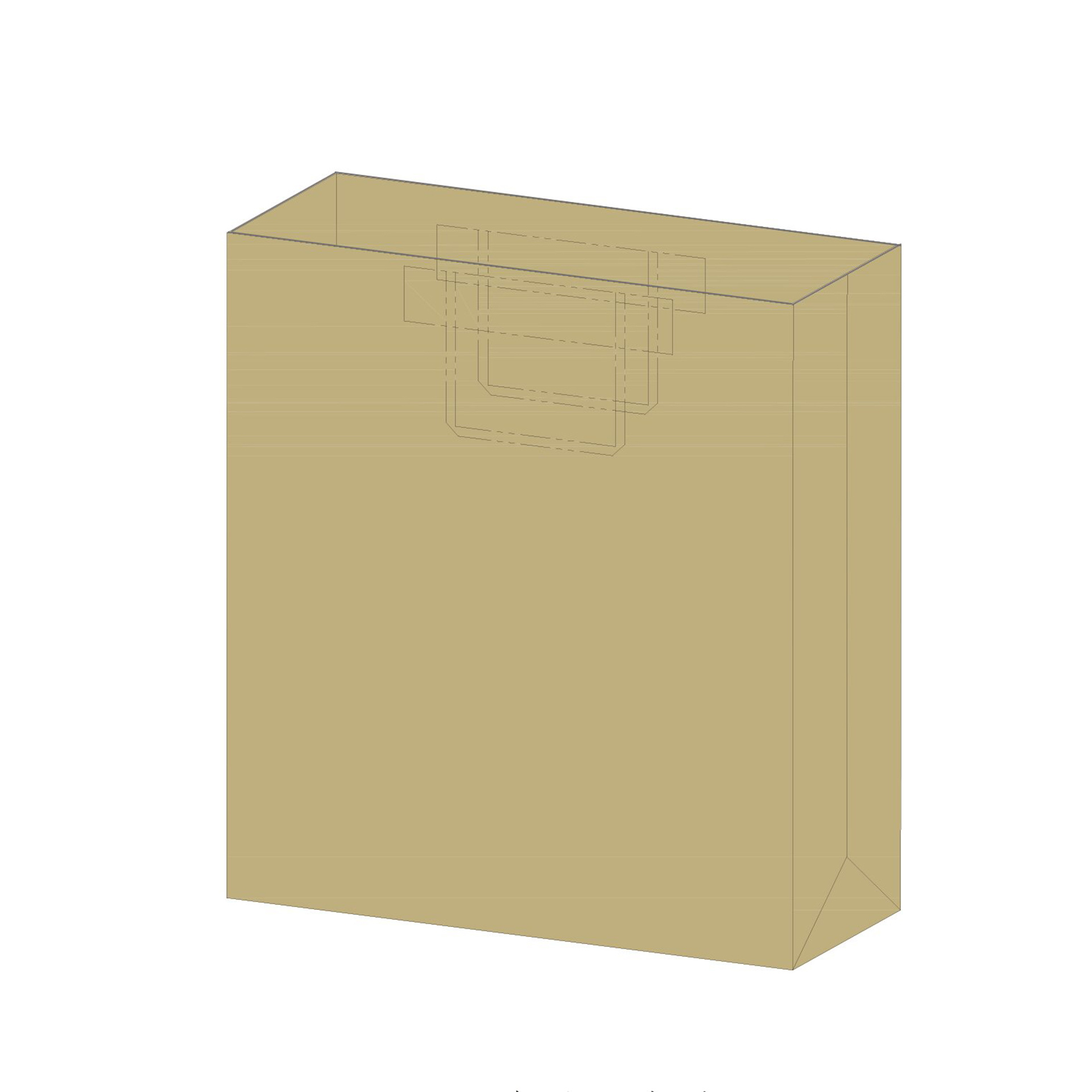

Model min cutting length change when doing bag with handle:10mm			RZFD-330IF
Cutting length	Without handle	C	270-530mm
	Exposed handle	C+	270-430mm
	切袋长内折（全） Infolding handle	C+=C	300-530mm
Bag width	Without handle	W	120-330mm
	With handle	W	220-330mm
Bottom width		H	70-180mm
Bottom width		H	80-220mm
Paper thickness	Without handle		60-150gsm
	With handle		80-150gsm
Paper roll width mm）	Without handle		380-1050mm
	With handle		630-1050mm
Paper roll diameter（mm）			1300mm
Paper core inner diameter（mm）			76mm
Patch length P1			160
Patch width P2			52mm
Patch paper thickness			100-110gsm
Patch roll width			100mm
Patch roll diameter			1200mm
R2 Paper loop height			75mm
R3 Handle distance			100mm
R1 Flat loop width			12mm
Flat loop paper thickness			80gsm
			1200mm
bags/min Machine Speed			30-220bag/min
Speed bag/min	Without handle		30-220bag/min
	With flat handle		30-150bag/min
Power supply			380V 3 phrase 38kw
Machine weight			22000kg
Machine size (mm)			1900060002700mm

1.With original France SCHNEIDER human-computer touch screen,it is easy to operate and control.

2.With Germany LENZE motion controller( PLC), integrated with optical fiber,ensure the machine with high speed steadily.

3.With Germany LENZE servo motor integrated with Germany original SICK rectifying photo sensor, ensure the printed paper length under tracking precisely.

4.Hydraulic up and down loading structure, integrated with constant tension control unwinding system.

5.With Italy SELECTRA material edge rectify system, substantially cut off the edge alignment time.

Name	QTY	Original	Brand
Control System
CPU Program Controller	1	Germany	LENZE
PLC Power module	1	Germany	LENZE
PLC Input module	4	Germany	LENZE
PLC Point card	1	Germany	LENZE
touch screen	1	France	SCHNEIDER
servo motor	5	Germany	LENZE
servo drivers	3	Germany	LENZE
Servo power supply	1	Germany	LENZE
Photoelectric printing tracking sensor	1	Germany	SICK
Low voltage electrical apparatus	1	America	EATON
Photoelectric sensor	1	Switzerland	BAUMER
Pneumatic component	1	Taiwan
Auto lubricating	1	China
Air conditioner for electric control box	1	China
Deviation correction and tension control system
EPC controller	5	Italy	SELECTRA
Servo motor for EPC	5	Italy	SELECTRA
Ultrasonic sensor	5	Italy	SELECTRA
Magnetic powder brake	5	China
Tension control systerm	1	China
Magpowder semi-automatic tension	4	China
Auto hydraulic material lifter motor	1	Taiwan China
Hydraulic material cylinder	1	China
Transmission
Synchronous belt	1	China	BELDI
Synchronous wheel	1	China	RUIZHI
Bearing	1	Germany	FALA
Guide roller	1	China	BAIXIAO
Gear	1	China	RUIZHI
side and bottom Glue position
Bottom glue (bottom-sealing water based glue)	1	China	RUIZHI
Motor for bottom glue evening	1	China
Pneumatic auto glue filling valve	1	China
Nozzle for side gluing	1	China	HK
High-pressure glue barrel for water based glue supplying	1	China	RUIZHI
Name	QTY	Original	Brand
Control System
CPU Program Controller	1	Germany	LENZE
PLC Power module	1	Germany	LENZE
PLC Input module	4	Germany	LENZE
PLC Point card	1	Germany	LENZE
touch screen	1	France	SCHNEIDER
servo motor	5	Germany	LENZE
servo drivers	3	Germany	LENZE
Servo power supply	1	Germany	LENZE
Photoelectric printing tracking sensor	1	Germany	SICK
Low voltage electrical apparatus	1	America	EATON
Photoelectric sensor	1	Switzerland	BAUMER
Pneumatic component	1	Taiwan
Auto lubricating	1	China
Air conditioner for electric control box	1	China
Deviation correction and tension control system
EPC controller	5	Italy	SELECTRA
Servo motor for EPC	5	Italy	SELECTRA
Ultrasonic sensor	5	Italy	SELECTRA
Magnetic powder brake	5	China
Tension control systerm	1	China
Magpowder semi-automatic tension	4	China
Auto hydraulic material lifter motor	1	Taiwan China
Hydraulic material cylinder	1	China
Transmission
Synchronous belt	1	China	BELDI
Synchronous wheel	1	China	RUIZHI
Bearing	1	Germany	FALA
Guide roller	1	China	BAIXIAO
Gear	1	China	RUIZHI
side and bottom Glue position
Bottom glue (bottom-sealing water based glue)	1	China	RUIZHI
Motor for bottom glue evening	1	China
Pneumatic auto glue filling valve	1	China
Nozzle for side gluing	1	China	HK
High-pressure glue barrel for water based glue supplying	1	China	RUIZHI

Note:The purchased parts used in this machine will be replaced by the same-level brand that is not lower than the existing brand quality when the equipment is upgraded or updated. The seller will reserve the right without further notice.
