RZFD-450AIF Roll-fed fully-auto square bottom paper bag machine With (Infolding flat handle inline)

This machine is designed to manufacture square bottom paper bags with handle (infolding or exposed) from paper roll, paper patch roll and paper rope, it is an ideal machine to make paper shopping bag. This machine is also able to make square bottom paper bag without handle in a higher speed. By implementing steps including handle making, tube cutting, and bottom forming within a fully automatic process, this machine can effectively save labor cost.

Classification：

Square Bottom Paper Carry Bag Machine

Keyword：

Message

E-mail: sales@wzruizhi.com

产品描述
Parameter
Configuration
Details

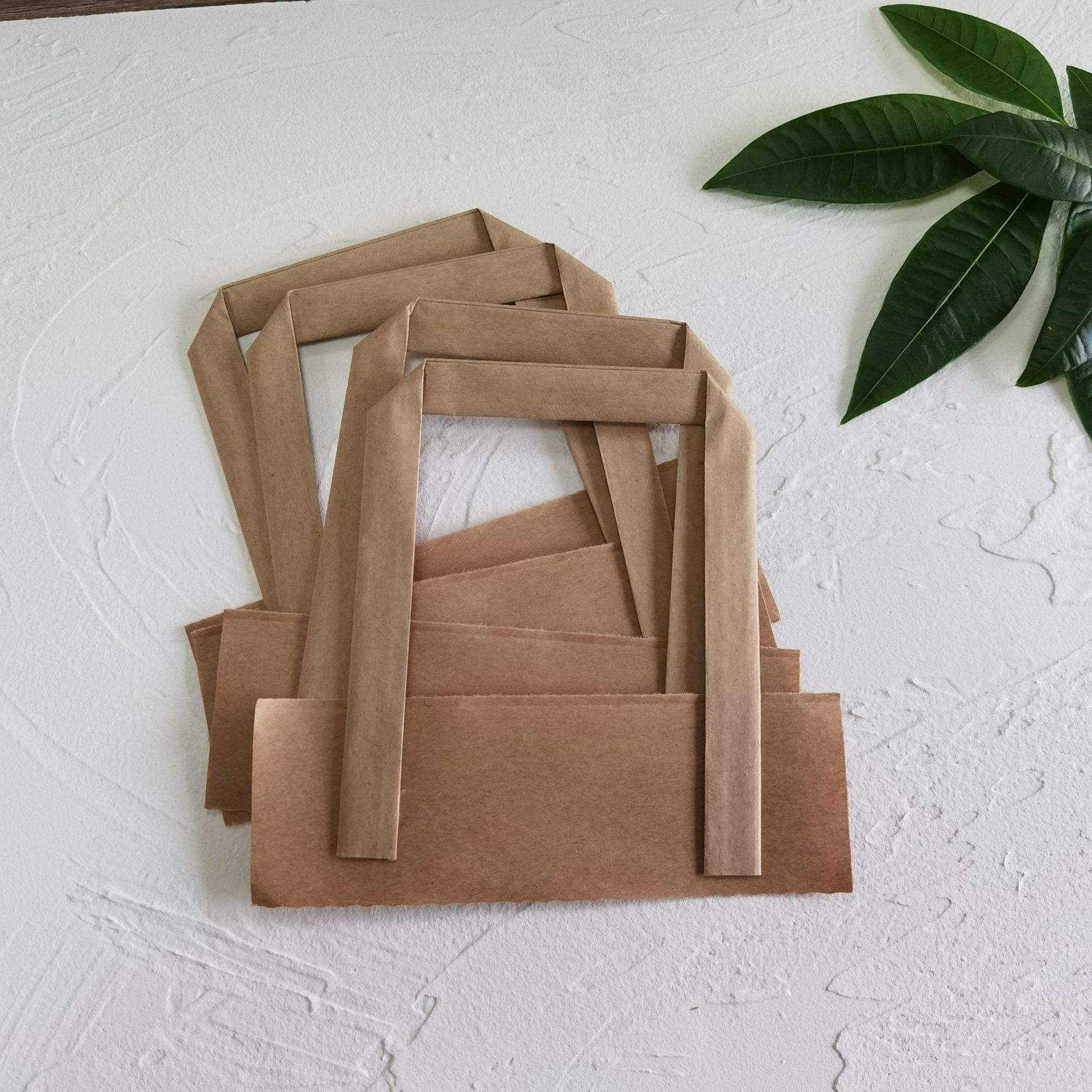

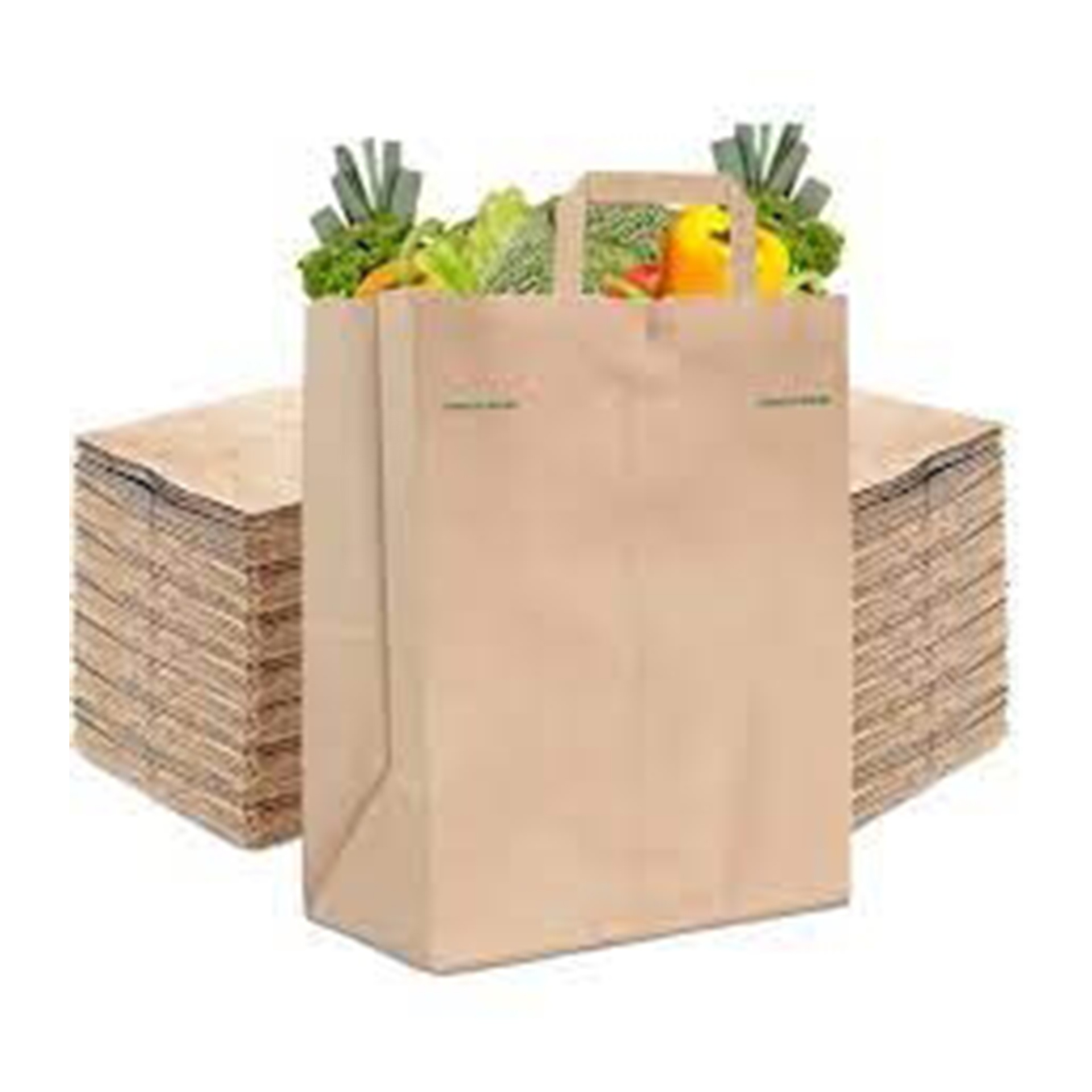

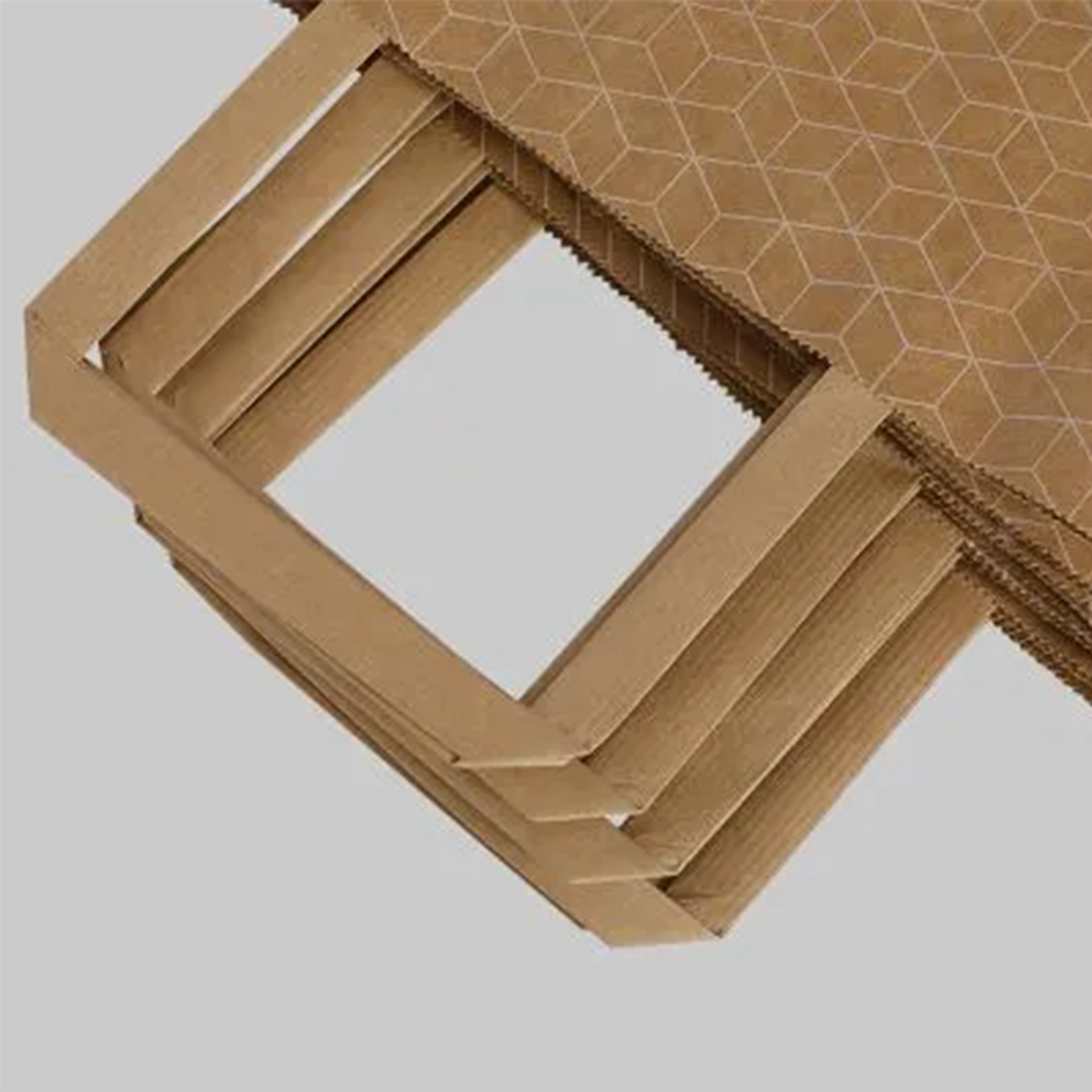

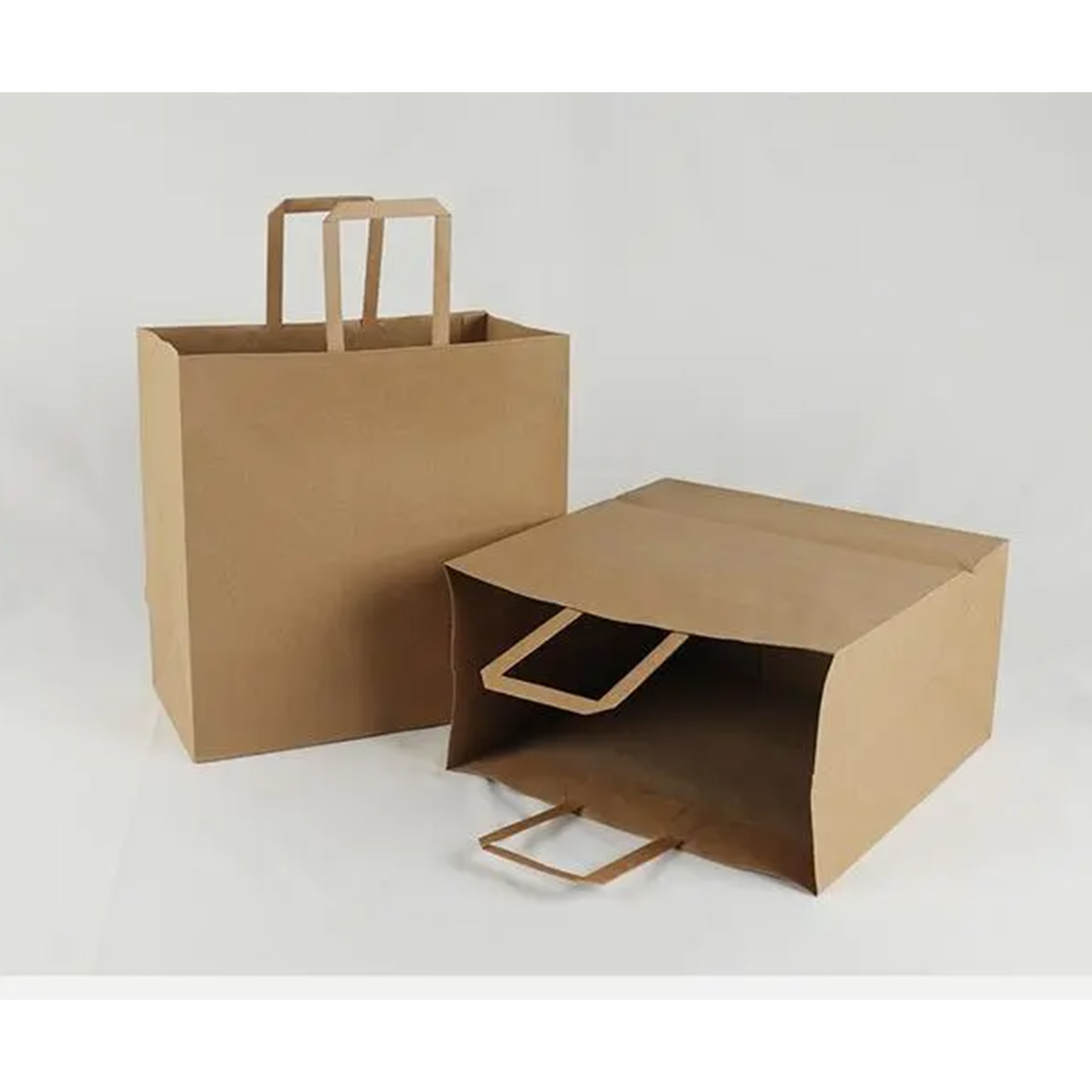

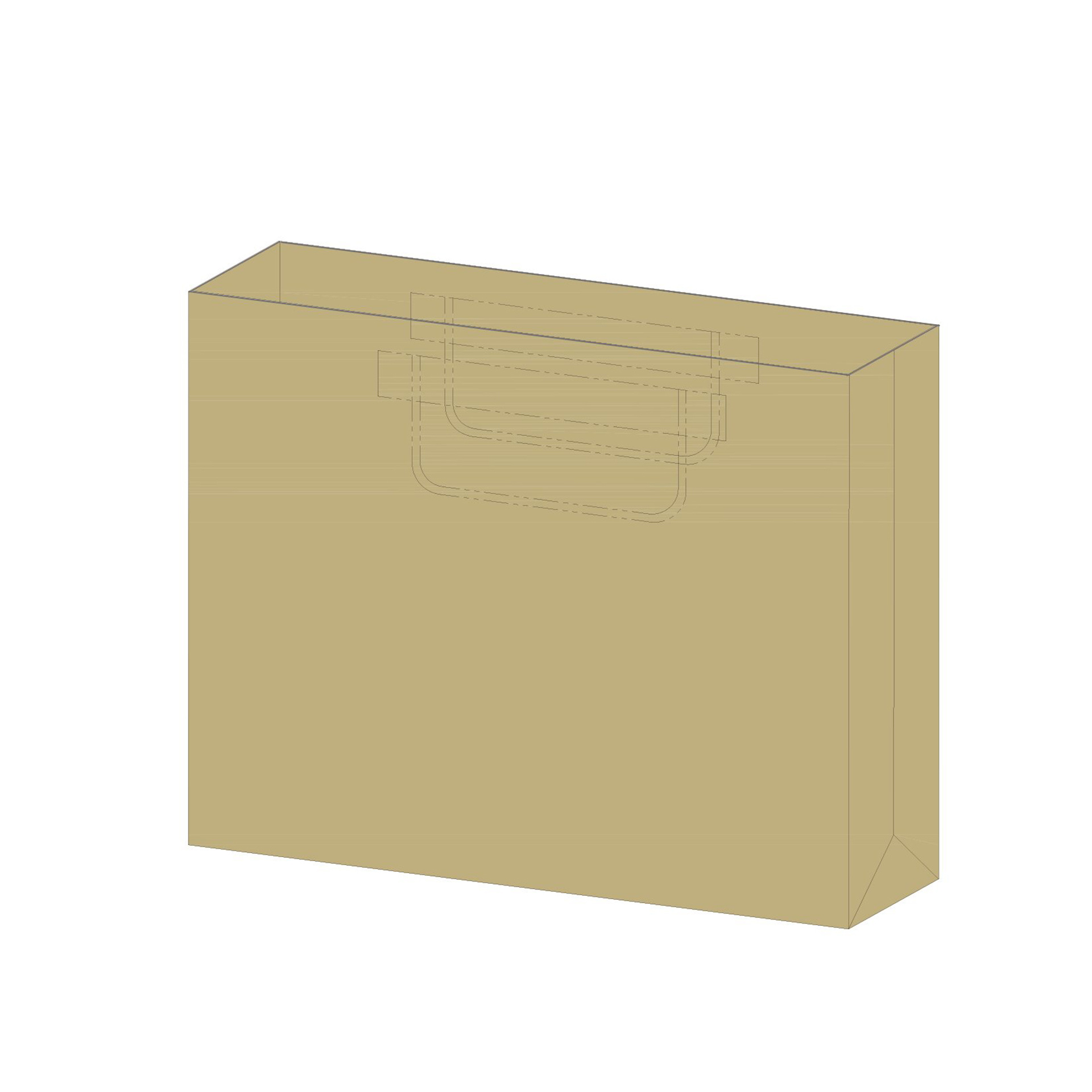

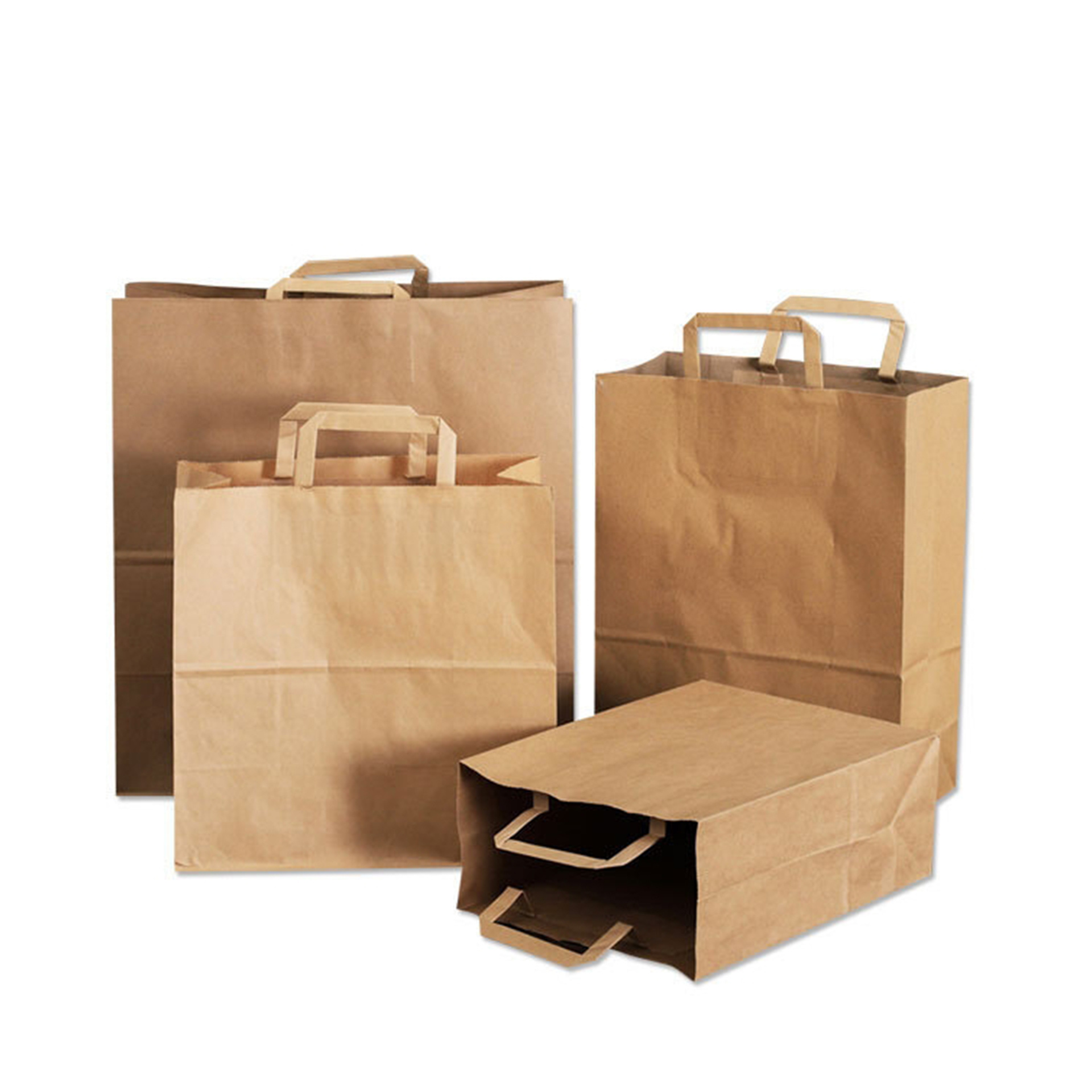

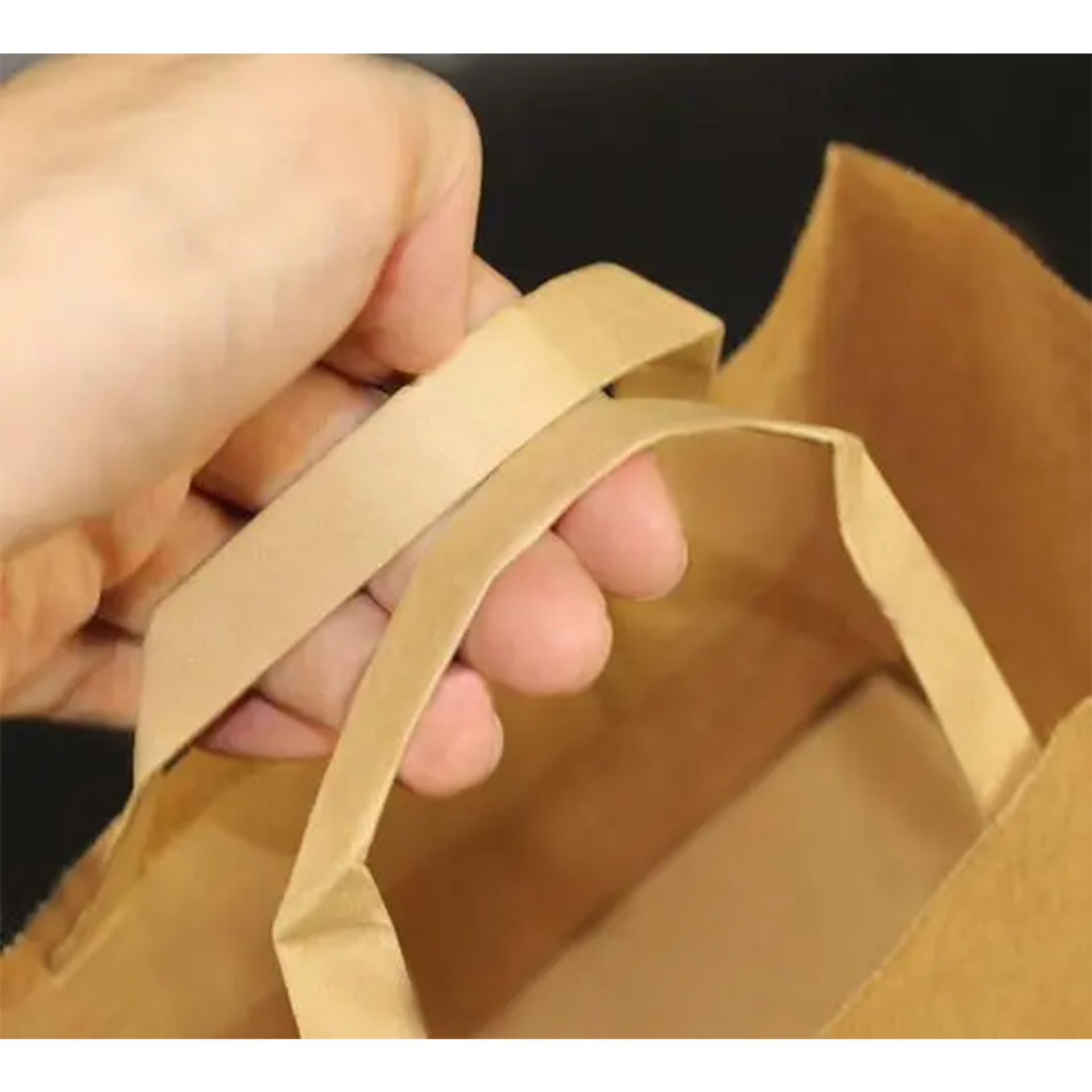

Sample Bag
Video

- Commodity name: RZFD-450AIF Roll-fed fully-auto square bottom paper bag machine With (Infolding flat handle inline)
- Commodity ID: RZFD-450AIF
This machine is designed to manufacture square bottom paper bags with handle (infolding or exposed) from paper roll, paper patch roll and paper rope, it is an ideal machine to make paper shopping bag. This machine is also able to make square bottom paper bag without handle in a higher speed. By implementing steps including handle making, tube cutting, and bottom forming within a fully automatic process, this machine can effectively save labor cost.

Model	RZFD--450AIF
Cutting length	300-630mm
Cutting length	300-630mm
Cutting length	300-530mm
Bag width	220-450mm
Bottom width	90-200mm
Paper Thickness	80-150g/㎡
Paper roll width	630-1370mm
Roll paper diameter	ф1300mm
Paper core	ф76mm
Patch length	160mm
patch width	52mm
Handheld paper patch weight	100-110g
Hand held flat rope width	12mm
Hand held flat rope high	75mm
Handle distance	100mm
Hand held flat rope cut to length	310mm
patch paper thickness	80g
Rope diameter	1200mm
Paper bag speed	30-150bag/min
Paper bag speed	30-120bag/min
Bottom folding type
Power Supply	380V 3 phrase 38.5kw
Machine weight	23000kg
Machine size	1650047003080mm

1.With original France SCHNEIDER human-computer touch screen,it is easy to operate and control.

2.With Germany LENZE motion controller( PLC), integrated with optical fiber,ensure the machine with high speed steadily.

3.With Germany LENZE servo motor integrated with Germany original SICK rectifying photo sensor, ensure the printed paper length under tracking precisely.

4.Hydraulic up and down loading structure, integrated with constant tension control unwinding system.

5.With Italy SELECTRA material edge rectify system, substantially cut off the edge alignment time.

Name	QTY	Original	Brand
Control System
CPU Program Controller	1	Germany	LENZE
PLC Power module	1	Germany	LENZE
PLC Input module	4	Germany	LENZE
PLC Point card	1	Germany	LENZE
touch screen	1	France	SCHNEIDER
servo motor	5	Germany	LENZE
servo drivers	3	Germany	LENZE
Servo power supply	1	Germany	LENZE
Photoelectric printing tracking sensor	1	Germany	SICK
Low voltage electrical apparatus	1	America	EATON
Photoelectric sensor	1	Switzerland	BAUMER
Pneumatic component	1	Taiwan
Auto lubricating	1	China
Air conditioner for electric control box	1	China
Deviation correction and tension control system
EPC controller	5	Italy	SELECTRA
Servo motor for EPC	5	Italy	SELECTRA
Ultrasonic sensor	5	Italy	SELECTRA
Magnetic powder brake	5	China
Tension control systerm	1	China
Magpowder semi-automatic tension	4	China
Auto hydraulic material lifter motor	1	Taiwan China
Hydraulic material cylinder	1	China
Transmission
Synchronous belt	1	China	BELDI
Synchronous wheel	1	China	RUIZHI
Bearing	1	Germany	FALA
Guide roller	1	China	BAIXIAO
Gear	1	China	RUIZHI
side and bottom Glue position
Bottom glue (bottom-sealing water based glue)	1	China	RUIZHI
Motor for bottom glue evening	1	China
Pneumatic auto glue filling valve	1	China
Nozzle for side gluing	1	China	HK
High-pressure glue barrel for water based glue supplying	1	China	RUIZHI

Note:The purchased parts used in this machine will be replaced by the same-level brand that is not lower than the existing brand quality when the equipment is upgraded or updated. The seller will reserve the right without further notice
