RZFD-550T Fully Automatic Square Bottom Paper Bag Machine with Handle inline
Fully automatic square bottom paper bag machine is designed for the production of paper bags with twisted handles. It is suitable for mass production of shopping bags in industries such as food and clothing. The one-line process consists of twisted handles making from paper rolls and twisted rope, delivery of handles to paste unit, pre-cutting of paper on position of rope, patch position gluing, handle pasting, and paper bag making. The paper bag making process consists of side gluing, tube forming, cutting, creasing, bottom gluing, bottom forming and bag delivery. This machine adopts German imported high-speed motion controller (CPU), which controls the operation of servo through high-speed bus to ensure stable movement and smooth motion curve. It is the automatic square bottom paper bag equipment with handles inline preferred by the majority of printing and packaging manufacturers.
Classification：
Keyword：
E-mail: sales@wzruizhi.com
- 产品描述
- Parameter
- Configuration
- Details

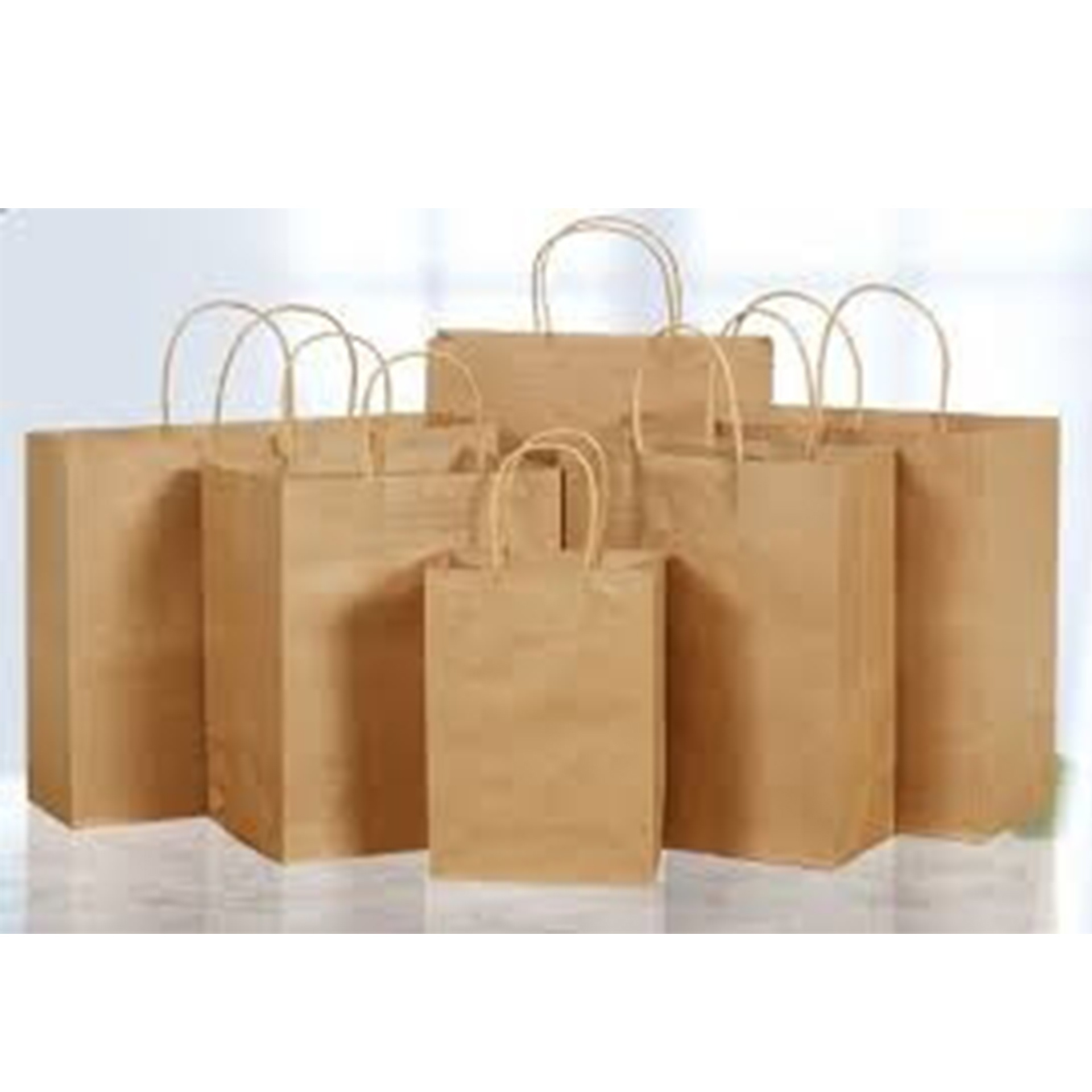

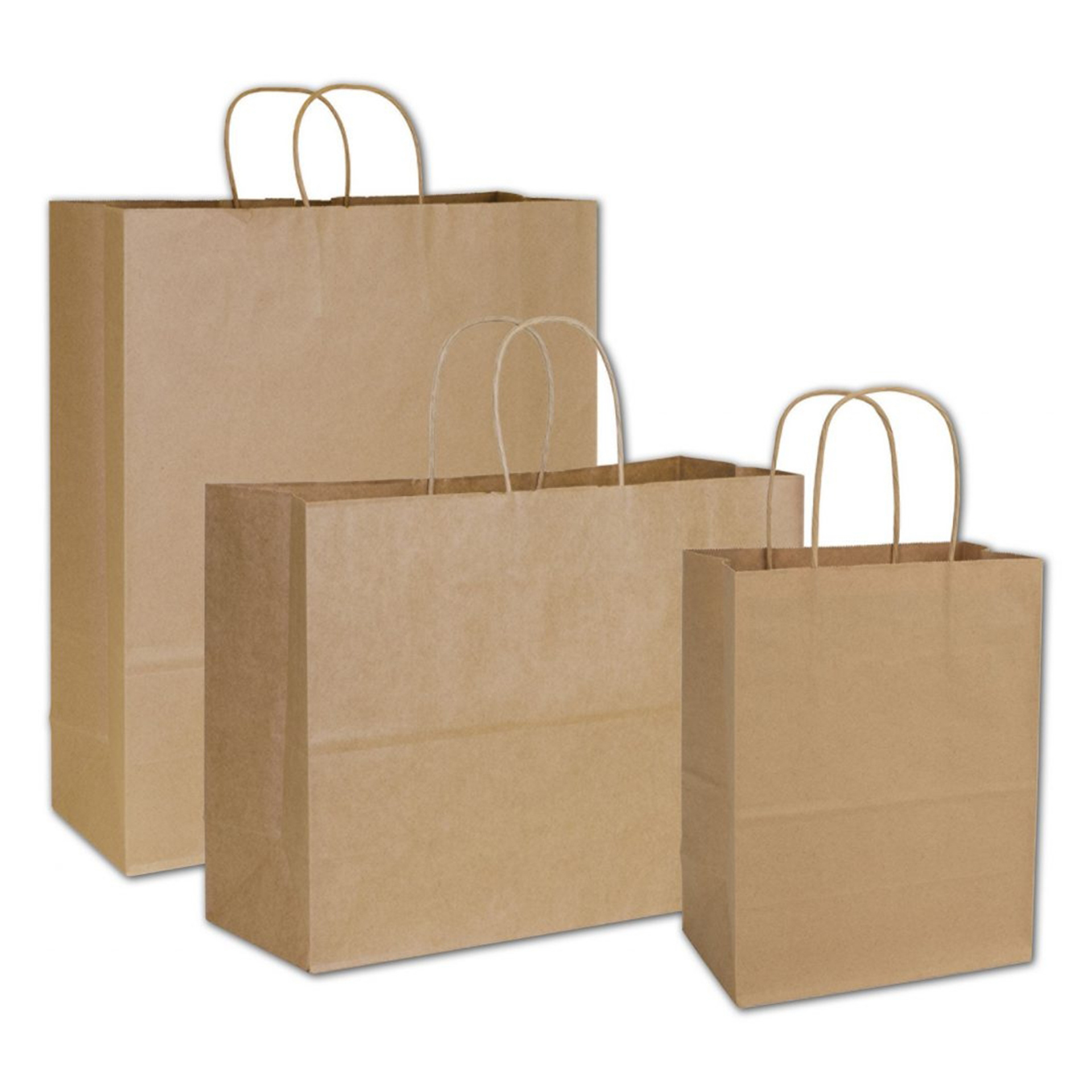

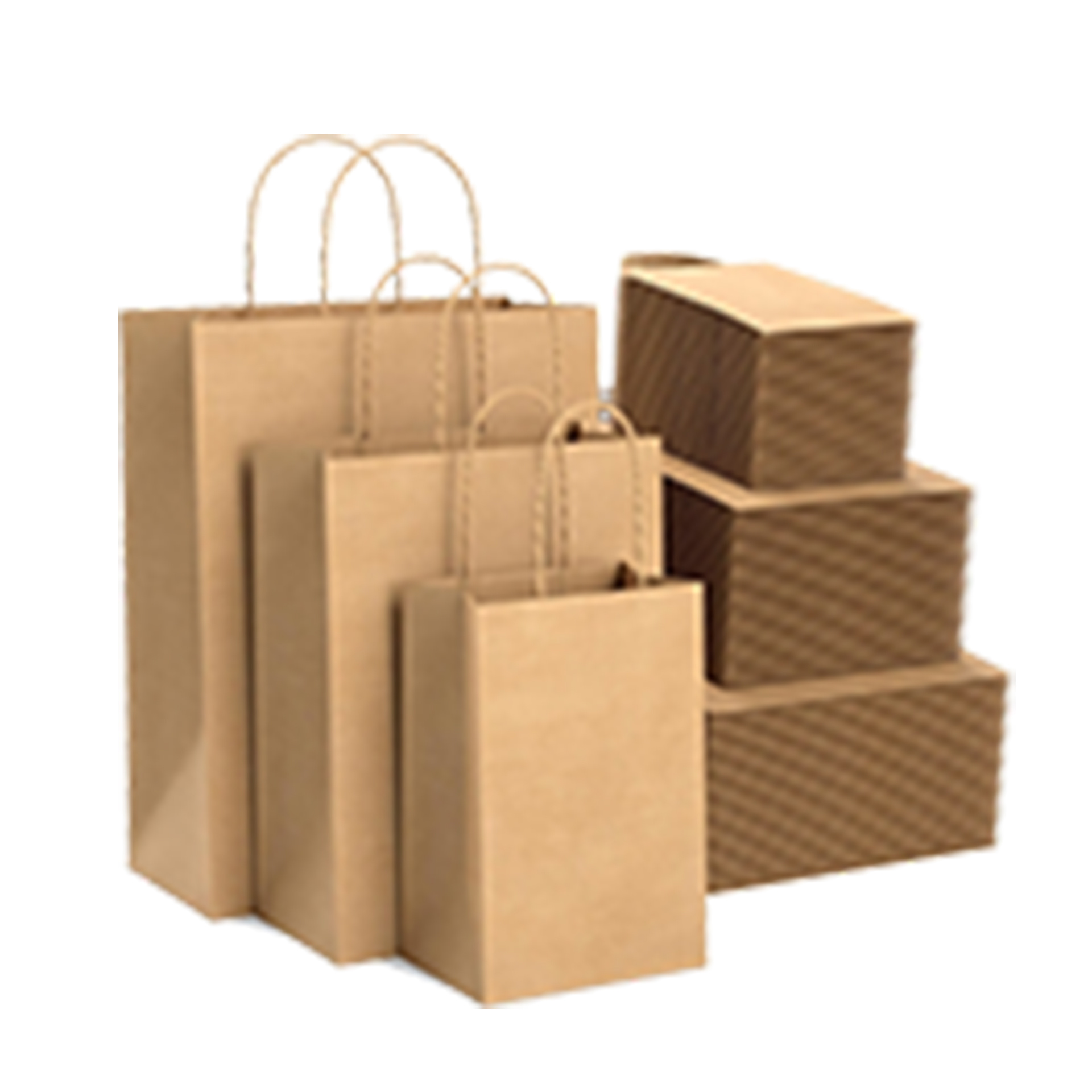

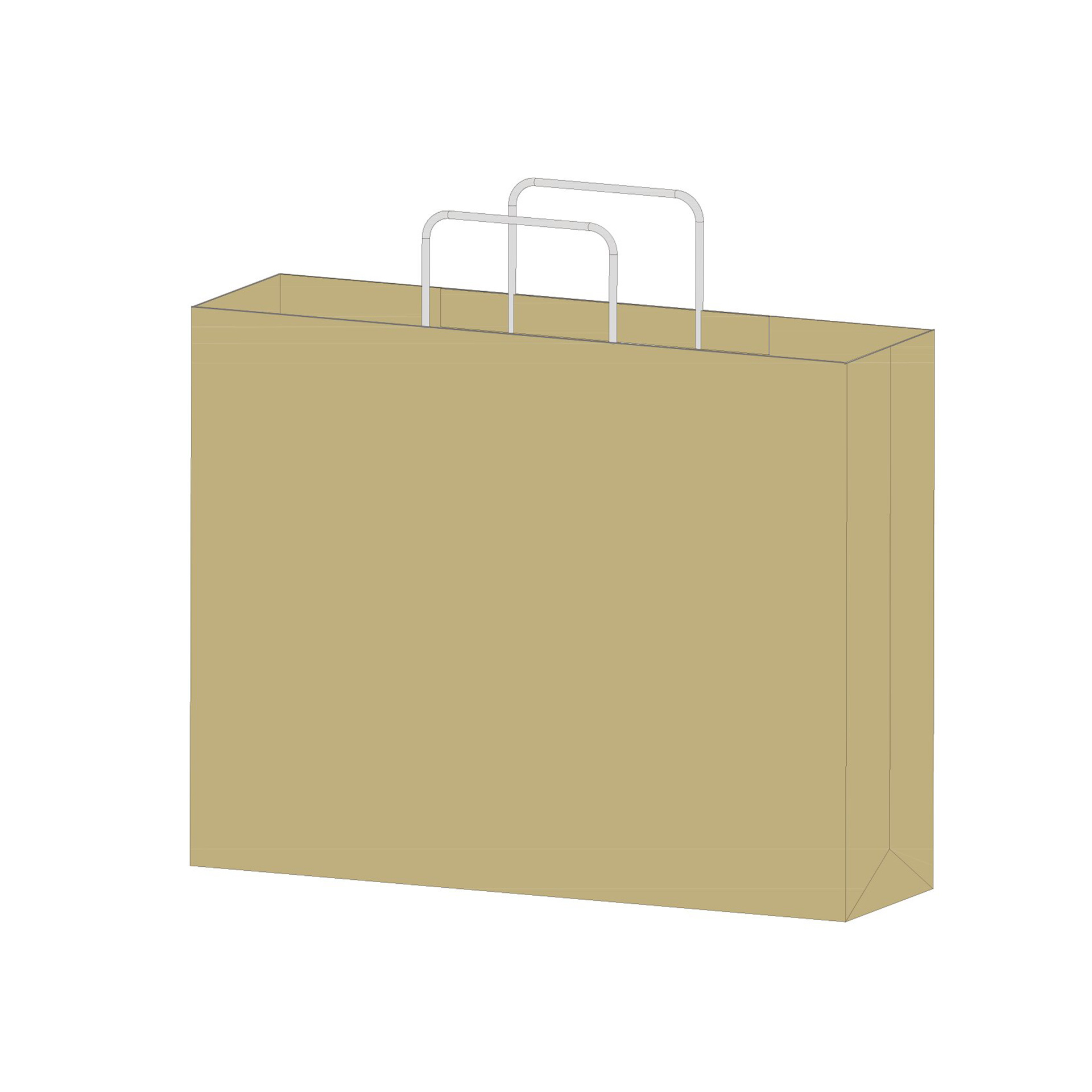

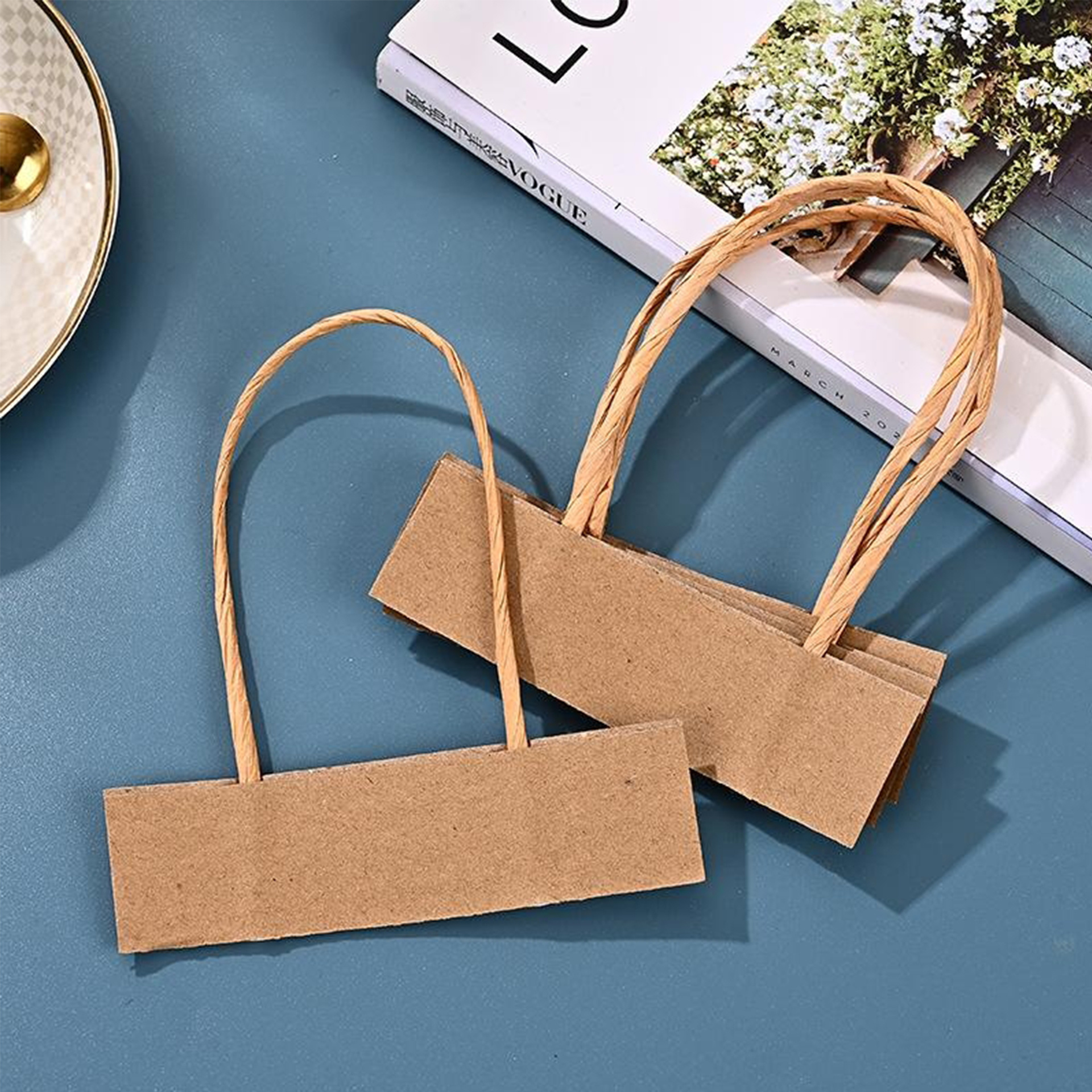

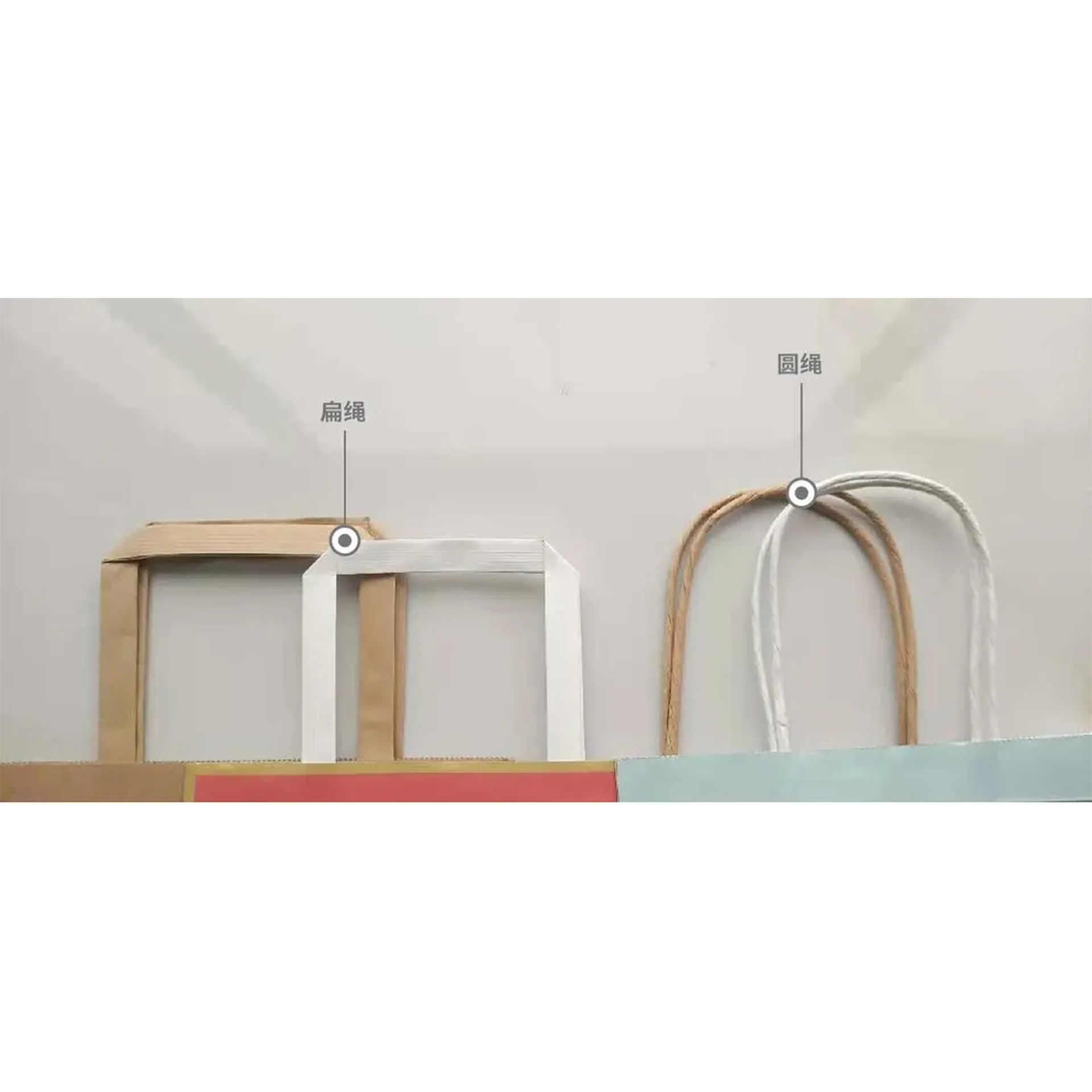

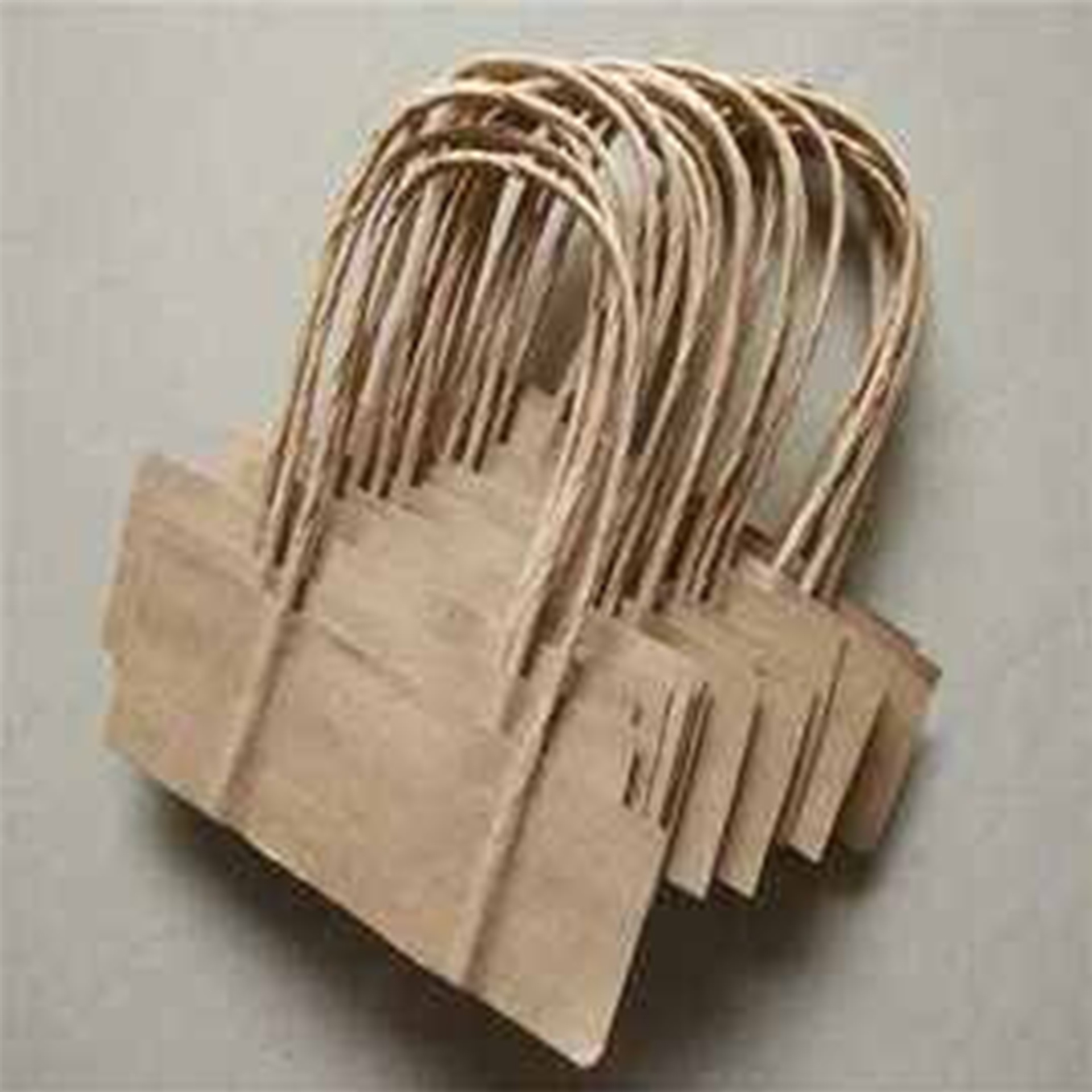

- Sample Bag
- Video
-
- Commodity name: RZFD-550T Fully Automatic Square Bottom Paper Bag Machine with Handle inline
- Commodity ID: RZFD-550T
Fully automatic square bottom paper bag machine is designed for the production of paper bags with twisted handles. It is suitable for mass production of shopping bags in industries such as food and clothing. The one-line process consists of twisted handles making from paper rolls and twisted rope, delivery of handles to paste unit, pre-cutting of paper on position of rope, patch position gluing, handle pasting, and paper bag making. The paper bag making process consists of side gluing, tube forming, cutting, creasing, bottom gluing, bottom forming and bag delivery. This machine adopts German imported high-speed motion controller (CPU), which controls the operation of servo through high-speed bus to ensure stable movement and smooth motion curve. It is the automatic square bottom paper bag equipment with handles inline preferred by the majority of printing and packaging manufacturers.
-
Model
RZFD--550T
Cutting length
380-760mm
Cutting length
380-660mm
Bag width
240-550mm
Bag width
240-550mm
Bottom width
120-300mm
Paper Thickness
80-150g/㎡
Paper Thickness
80-150g/㎡
Paper roll width
740—1730mm
Paper roll width
740—1730mm
Roll paper diameter
ф1300mm
Paper core
ф76mm
Patch length
190mm
Handle length
340mm
Handle distance
95mm
Rope diameter
Ф3-5m
Patch paper roll width
90-100mm
patch paper roll diameter
ф1200mm
patch paper thickness
100-135g/㎡
production speed for bags with handles
30-100bags/min
Machine Speed
30-150bags/min
Bottom folding type
Cutting knife
Sawtooth cutting and flat cutting
Power Supply
380V 3Phase 53.9KW
Machine weight
23T
Machine size
18500x6000x2800MM
-
1.Use France SCHNEIDER touch screen human-computer interface, making the machine easy to operate and control.
2.Adopt Germany original LENZE PC control, integrated with optical fiber. Thus ensure stable and high speed running.
3.Adopt Germany original LENZE servo motor and German original SICK photoelectric eye correction, tracking printing bag accurately.
4. Raw material loading adopts hydraulic auto-lifting structure. Unwind unit adopts auto tension control.
5.Raw material unwinding EPC adopts Italy SELECTRA, reducing material alignment time.
Control System
Name
QTY
Original
Brand
CPU Program Controller
1
Germany
LENZE
PLC Power module
1
Germany
LENZE
PLC Input module
2
Germany
LENZE
PLC Point card
1
Germany
LENZE
Main power filter
1
Germany
LENZE
人机界面触摸屏
Human-computer touch screen interface
1
France
SCHNEIDER
8
Germany
LENZE
Servo Motor Reducer
8
Germany
alpha
Servo driver
6
Germany
LENZE
Bag forming frequency converter
1
Switzerland
ABB
Bag forming motor
1
Taiwan
Photoelectric eye for printed-bag tracking
1
Germany
SICK
Optical fiber communication separator
1
USA
Low voltage electrical apparatus
1
Germany
EATON
Photoelectric sensor
1
USA
BAUMER
Pneumatic component
1
Taiwan
Auto lubricating
1
China
Air conditioner for electric control box
1
China
Deviation correction and tension control system
Name
QTY
Original
Brand
EPC controller
1
Italy
SELECTRA
Servo motor for EPC
1
Italy
SELECTRA
Ultrasonic sensor
1
Italy
SELECTRA
Magnetic powder brake
1
China
WEIZHENG
Automatic Tension System of Magnetic Powder
1
Germany
LENZE
Automatic Hydraulic Feeding Motor
1
Taiwan
Feeding hydraulic cylinder
1
China
Transmission
Name
Qty
Original
MTED
Synchronous belt
1
China
BELDI
Synchronous wheel
1
China
MTED
Bearing
1
Germany
FALA
Guide roller
1
China
BAIXIAO
Gear
1
China
MTED
Glue position
Name
Qty
Original
MTED
Bottom glue (bottom-sealing white latex)
1
China
MTED
Motor for bottom glue evening
2
China
Pneumatic auto glue filling valve
2
China
Glue Glue Position Detection
1
Switzerland
BAUMER
Spraying gun for center sealing (dense adjust Glue gun )
1
China
MTED
High-pressure glue barrel for white latex
3
China
MTED
Handle Pasting Unit
Name
Qty
Original
MTED
EPC controller
2
Italy
SELECTRA
Servo motor for EPC
2
Italy
SELECTRA
Ultrasonic sensor
2
Italy
SELECTRA
Hot Melt Glue Device
1
China
RUIZHI
Hot Melt Glue Gun
2
China
RUIZHI
Hot Melt Glue Gun
2
China
RUIZHI
Hand-held servo motor
1
Germany
lenze
Hand-held Servo Driver
1
Germany
lenze
The purchased parts used in this machine will be replaced by the same-level brand that is not lower than the existing brand quality when the equipment is upgraded or updated. The seller will reserve the right without further notice.
-
-
