RZFD-450AIF

Quality Assurance

Ruizhi Machinery paper bag machine with handle inline, committed to international standards,ensures our equipment delivers unparalleled quality and performance, consistently setting the benchmark in the industry.

High Safety Standards

Ruizhi Machinery paper bag machine with handle inline, with a full-cover safety shield and automatic shutdown alarm, ensures safe operation while protecting the product from external interference.

Modular Design

Ruizhi Machinery paper bag machine with handle inline, with the independent operation and coordination of modules (feeding, pre-punching, and bottom-folding) minimize downtime, streamline production, and ensure fast, efficient paper bag manufacturing.

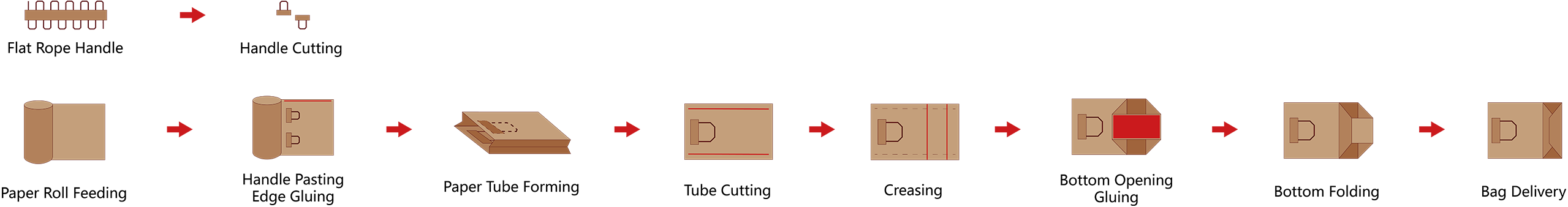

Paper Bag Forming Process

Specifications

Model	RZFD-450AIF
Cut-off Length	300-630mm
Cut-off Length(Outside Fold / with Handle)	300-530mm
Cut-off Length(Inside Fold / with Handle)	300-630mm
Bag Width	220-450mm
Bag Width (with Handle)	240-450mm
Bag Bottom Width	100-200mm
Bag Bottom Width(with Handle)	100-200mm
Basis Weight	80-150g/㎡
Basis Weight(with Handle)
Roll Width	660-1370mm
Roll Width(with Handle)
Roll Diameter	1500mm
Core Inner Diameter	76mm
Handle Patch Length	160mm
Handle Patch Width	52mm
Handle Patch Basis Weight	100g/㎡
Flat Cord Width	12mm
Flat Cord Height	75mm
Paper Cord Pitch	85mm
Handle Paper Basis Weight	80g/㎡
Handle Patch Roll Diameter	1200mm
Machine Speed	30-180pcs/min
Bag Making Speed	30-150pcs/min
Bag Making Speed(with Handle)	30-120pcs/min
Required Compressed Air	More than 0.36m³/min, 0.5-0.8MPa
Electrical Specifications	380V Three-Phase Four-Wire 42kW
Machine Weight	21000kg
Machine Dimensions	16000x4465x3080mm

FAQs

What basic company information should I provide?
Your company name, contact person’s name, phone number, and email address.
What equipment information do I need to provide?
The type and dimensions of the paper bags, as well as the types of paper the machine is required to handle.
What is included in the installation service?
The installation service typically includes machine installation and commissioning.
What does the training service include?
It includes operator training and safety instructions.
What does the routine maintenance service include?
It includes inspection of wear parts and routine machine maintenance.
What is the response time for troubleshooting?
For operational and technical issues, we typically respond within 24 hours. For electrical or software-related issues, additional time may be required for step-by-step diagnosis and troubleshooting.
How is remote support provided?
Electrical and hardware issues can be addressed by phone or video support, while software and control program issues can be handled through remote access to the computer system.
What is the lead time for delivery of the complete machine?
The lead time is 15 working days for flat bottom paper bag machines, and 30 working days for square bottom and paper bag machines with handles.
Do you offer equipment upgrade services?
Yes. Remote software and program upgrades are available.
What is the process for handling customer feedback?
Customers can submit feedback through the after-sales service ticketing system on our website, and our after-sales team will follow up accordingly.
