RZFD-550N Square Bottom Paper Bag Machine Expands Production Capacity for Large-Size Wide-Format Paper Bags

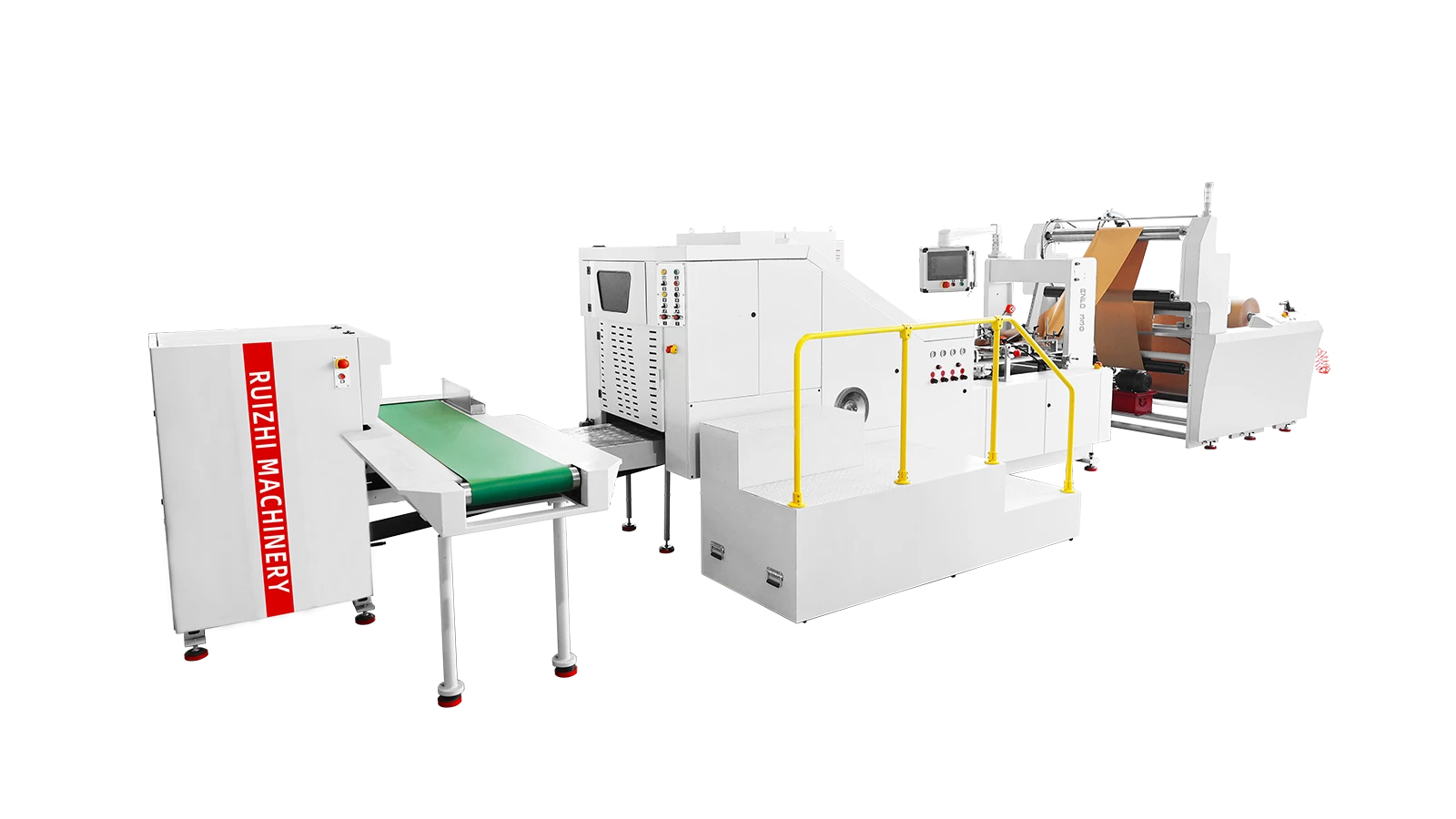

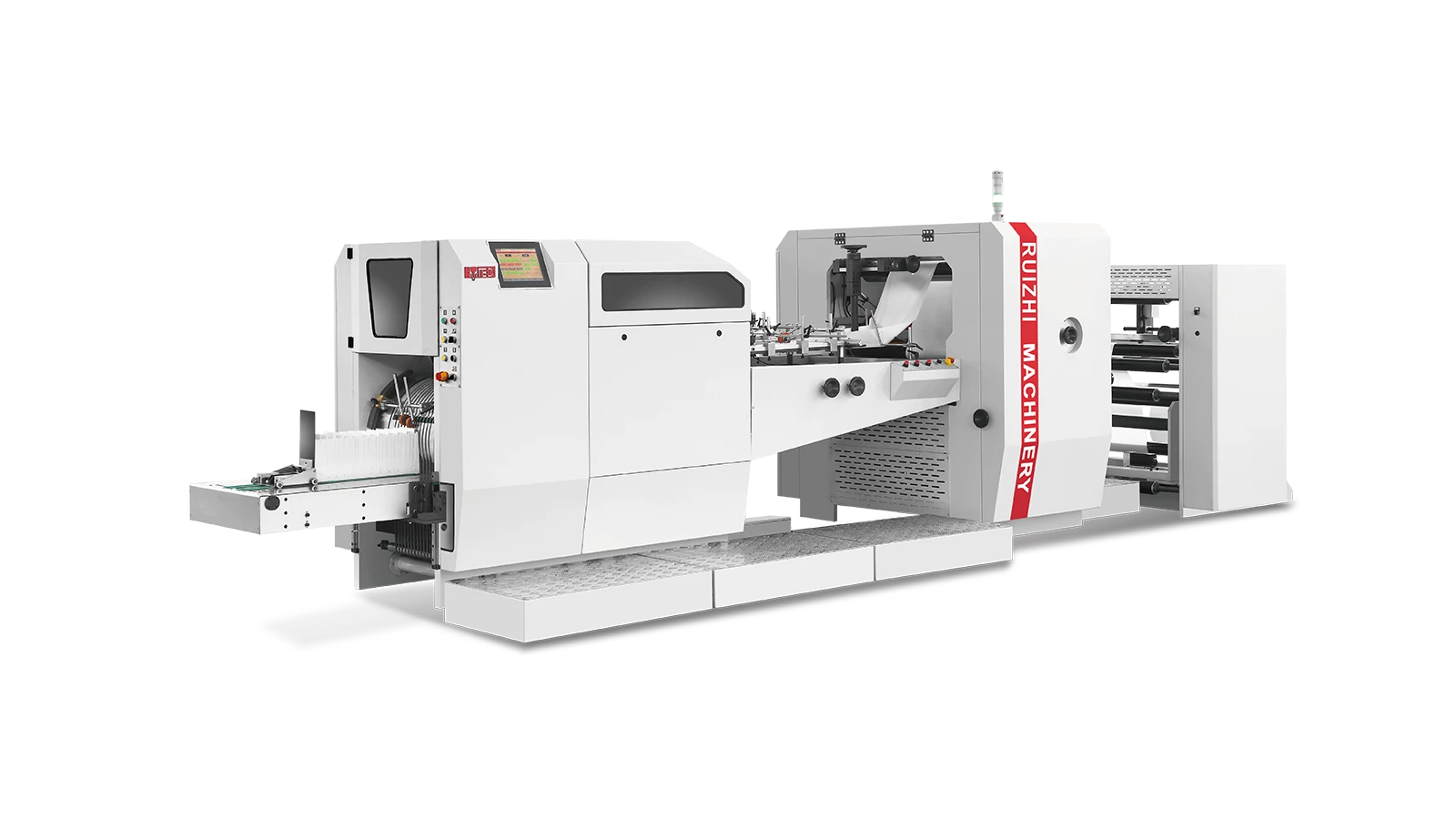

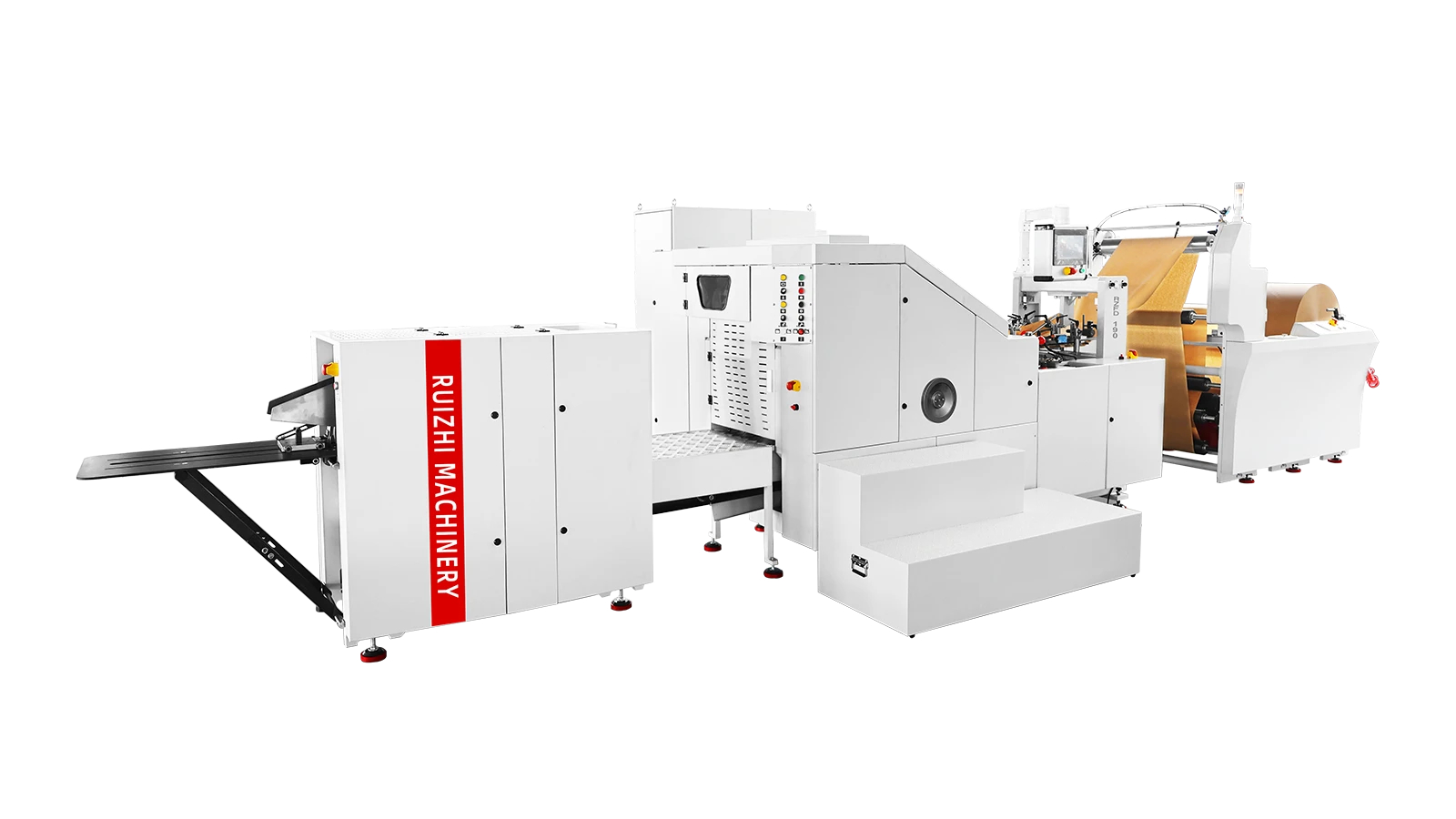

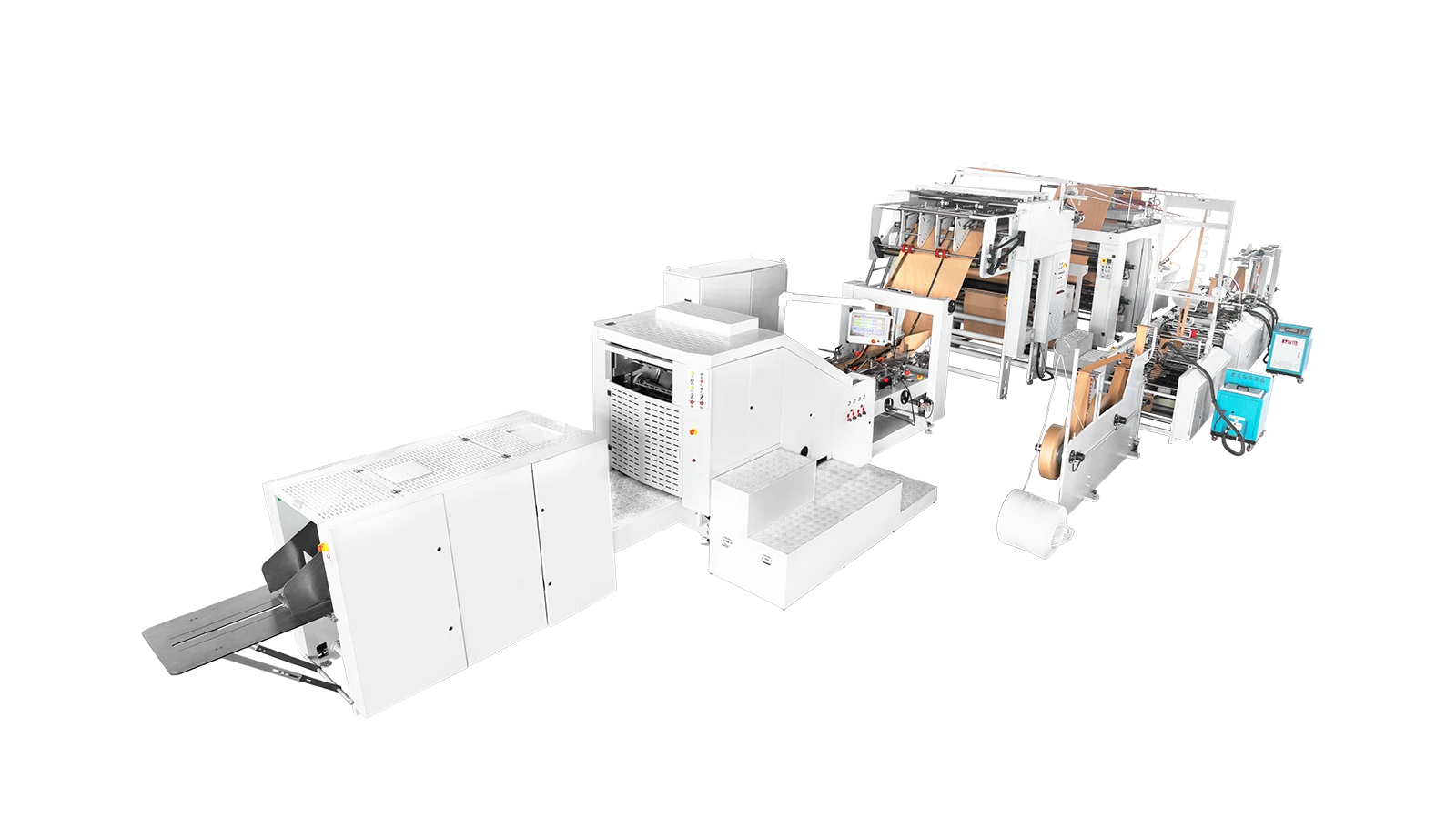

As supermarket retail, food and bakery, and agricultural product packaging continue to move toward larger-capacity formats, packaging enterprises need to expand their wide-format paper bag processing capabilities beyond standard orders. The RZFD-550N square bottom paper bag machine is designed for the production of large-size square bottom paper bags and can accommodate both standard batch orders and customized orders with different sizes and printing layouts. Unwinding, paper feeding, web guiding, creasing, gluing, square bottom forming, cutting, and collection operate continuously, helping reduce material handling and allowing wide-format products to be incorporated into existing workshop production schedules.

The machine can be used with environmentally friendly water-based adhesives for food packaging and is compatible with commonly used materials such as kraft paper, greaseproof coated paper, and pre-printed paper, making it suitable for bakery, food, supermarket, and agricultural product packaging bags. When producing color-printed paper bags, the photoelectric positioning system identifies printed registration marks and coordinates the cutting position with the bag-forming rhythm, reducing the possibility of graphic deviation, stretching, and layout misalignment. The gluing process can be adjusted according to paper thickness and operating speed, helping achieve more uniform bonding along the bag sides and bottom while balancing packaging appearance with practical load-carrying requirements.

The RZFD-550N adopts a reinforced frame and enclosed protective structure, providing support for the continuous operation of wide-format paper materials while also facilitating workshop cleaning, routine inspection, and maintenance. The touchscreen system can store process parameters for different bag types, reducing repeated setup when specifications or printing layouts change. The finished square bottom paper bags provide good standing and stacking performance, making them convenient for subsequent packing, warehousing, and transportation. The machine can help packaging enterprises expand large-size paper bag production capacity, broaden the range of orders they can handle, and improve production organization for wide-format paper bag operations.
