Reinforced bag bottom for improved load-bearing performance

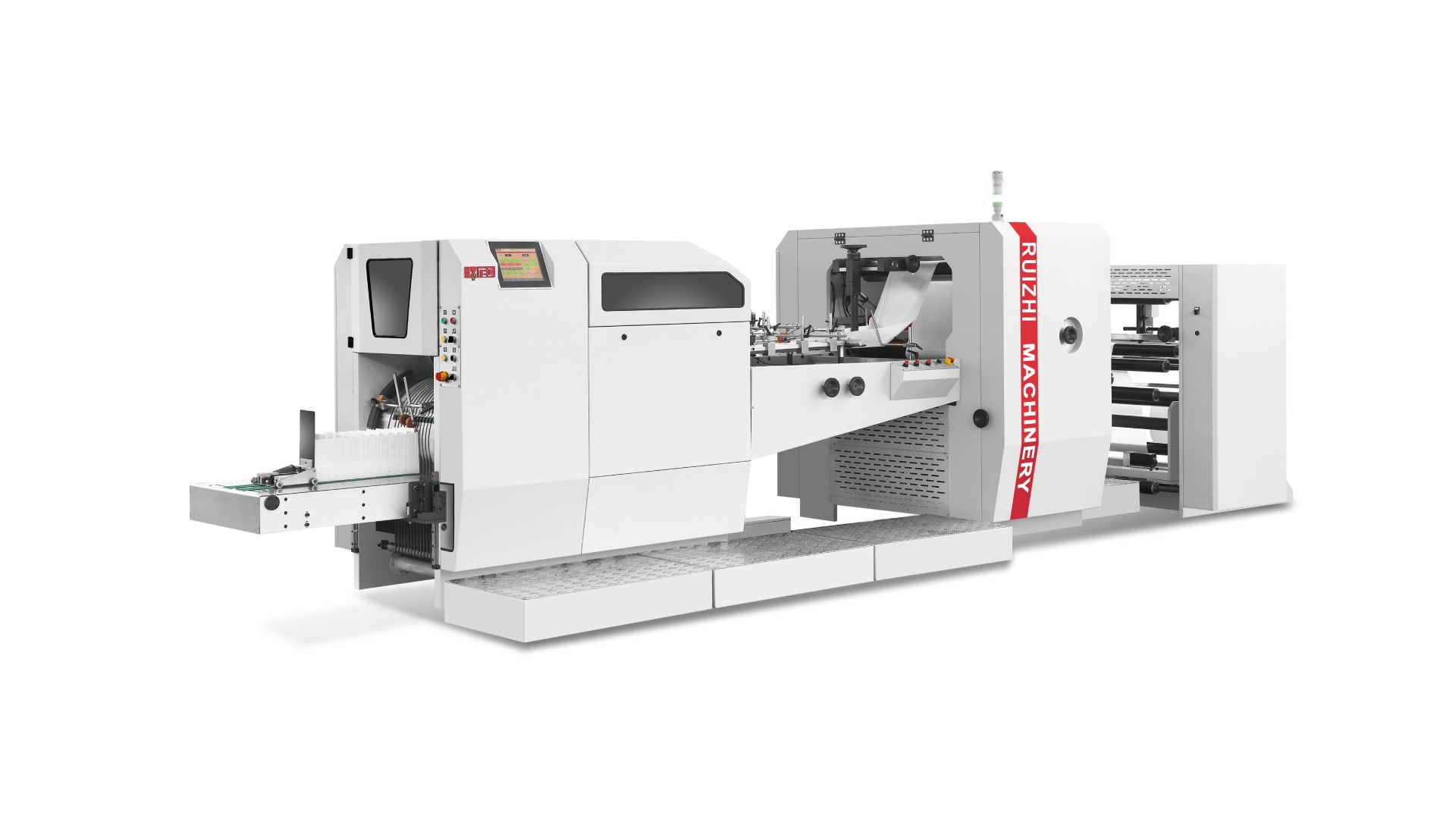

Ruizhi Machinery flat bottom paper bag machine, committed to international standards,ensures our equipment delivers unparalleled quality and performance, consistently setting the benchmark in the industry.
Ruizhi Machinery flat bottom paper bag machine, with a full-cover safety shield and automatic shutdown alarm, ensures safe operation while protecting the product from external interference.
Ruizhi Machinery flat bottom paper bag machine, with the independent operation and coordination of modules (feeding, pre-punching, and bottom-folding) minimize downtime, streamline production, and ensure fast, efficient paper bag manufacturing.

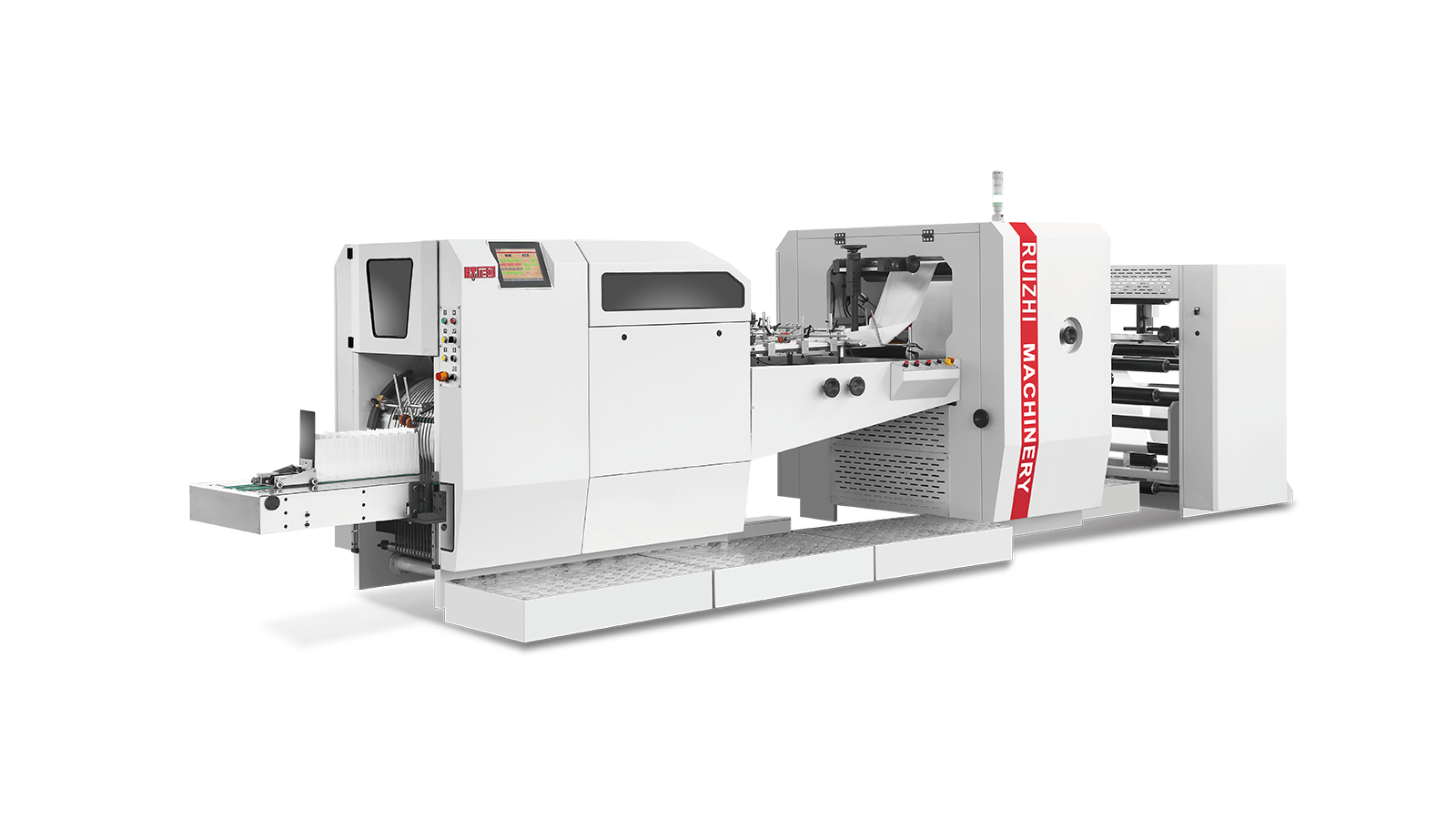

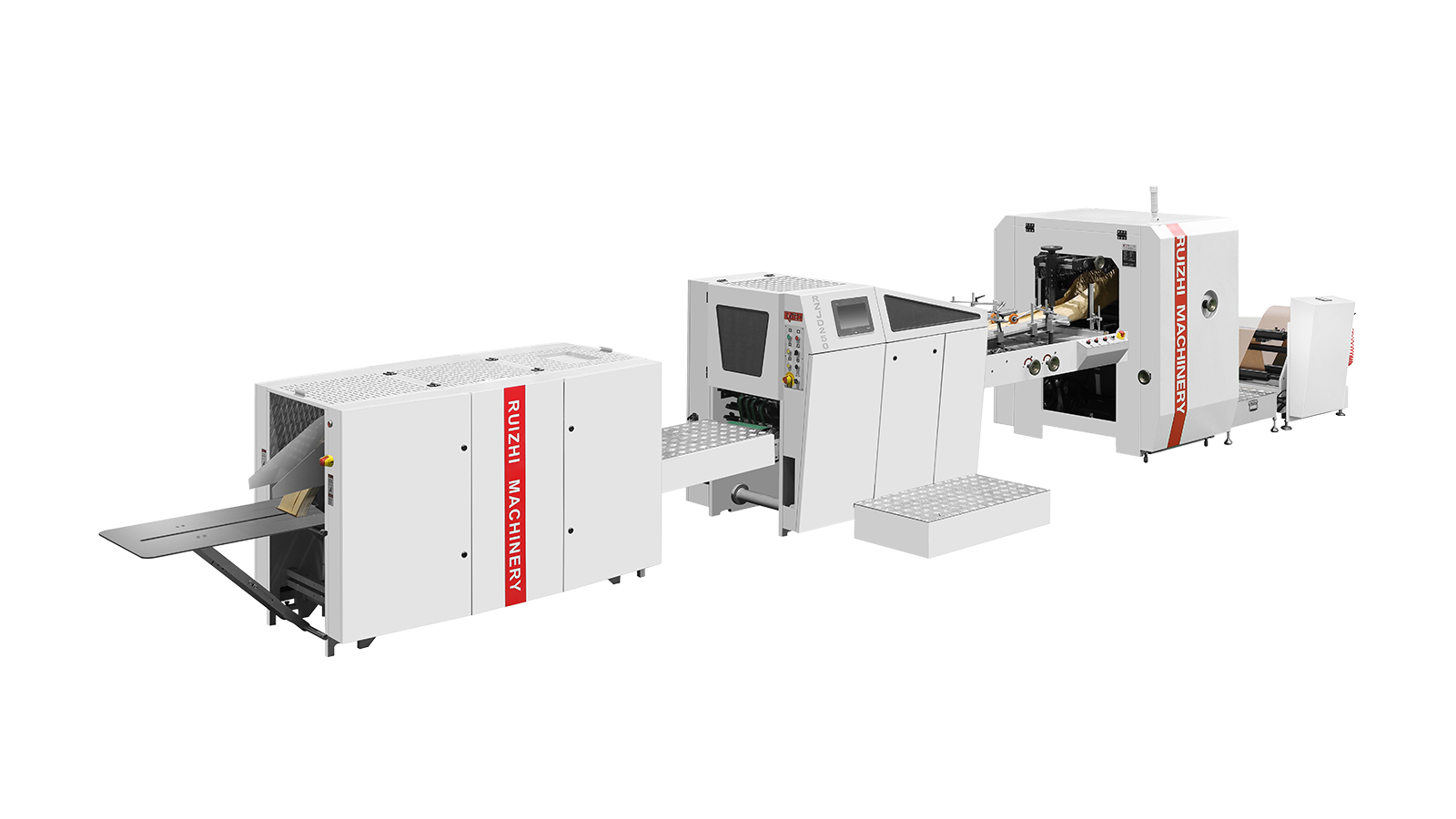

| Model | RZJD-G350J with Bottom Double Fold |
| Cut-off Length | 260-715mm |
| Bag Width | 120-350mm |
| Gusset Width | 40-120mm |
| Bag Mouth Height | 15/20mm |
| Bag Making Speed | 20-150pcs/min |
| First Fold Width | 25mm |
| Second Fold Width | 20mm |
| Roll Diameter | 1200mm 800KG |
| Core Inner Diameter | 76mm |
| Basis Weight | 40-70g/㎡ |
| Required Compressed Air | More than 0.2m³/min, 0.5-0.8MPa |
| Electrical Specifications | 380V Three-Phase Four-Wire 32kW |
| Machine Weight | 10700kg |
| Machine Dimensions | 8500×2800×2000mm |
