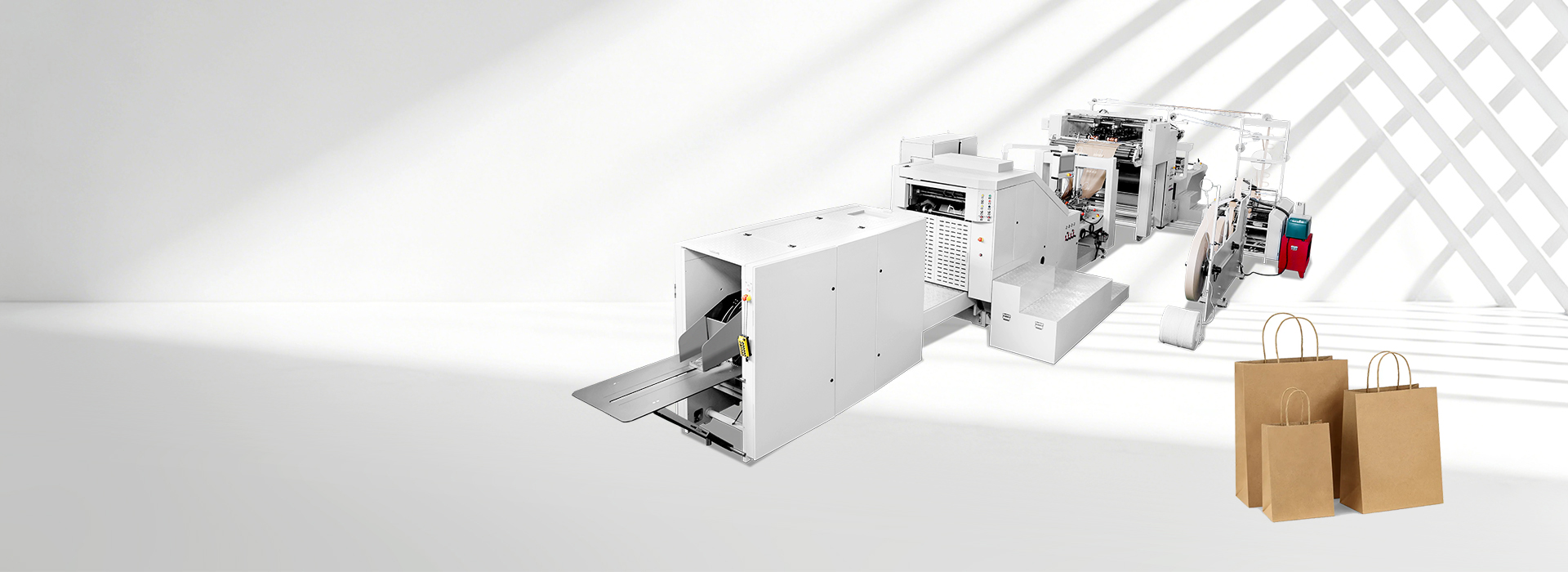

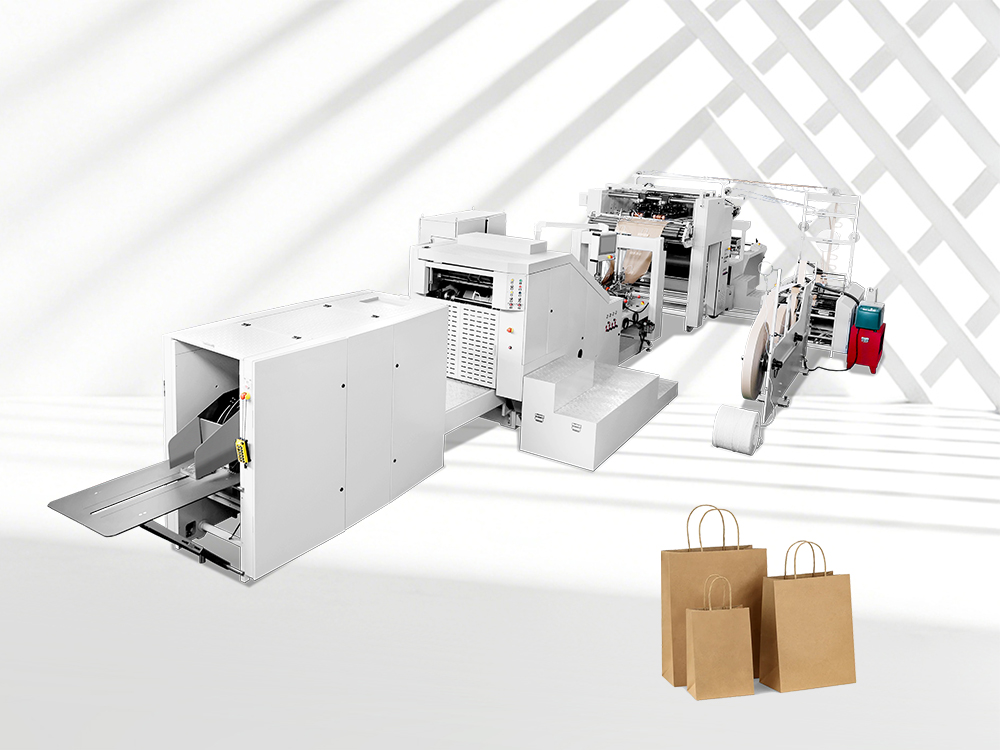

Ruizhi Machinery paper bag machine with handle inline, committed to international standards,ensures our equipment delivers unparalleled quality and performance, consistently setting the benchmark in the industry.
Ruizhi Machinery paper bag machine with handle inline, with a full-cover safety shield and automatic shutdown alarm, ensures safe operation while protecting the product from external interference.
Ruizhi Machinery paper bag machine with handle inline, with the independent operation and coordination of modules (feeding, pre-punching, and bottom-folding) minimize downtime, streamline production, and ensure fast, efficient paper bag manufacturing.
| Model | RZFD-450AT |
| Cut-off Length | 300-630mm |
| Cut-off Length (with Handle) | 300-530mm |
| Bag Width | 220-450mm |
| Bag Width (with Handle) | 240-450mm |
| Bag Bottom Width | 100-200mm |
| Bag Bottom Width(with Handle) | 100-200mm |
| Basis Weight | 70-150g/㎡ |
| Basis Weight(with Handle) | 80-150g/㎡ |
| Roll Width | 660-1320mm |
| Roll Width(with Handle) | 700-1320mm |
| Roll Diameter | 1500mm |
| Core Inner Diameter | 76mm |
| Handle Patch Length | 190mm |
| Handle Patch Roll Width | 80-100mm |
| Handle Patch Width | 40-50mm |
| Paper Cord Length (Round Cord) | 360mm |
| Handle Patch Roll Diameter | 1200mm |
| Paper Cord Pitch | 95mm |
| Handle Patch Basis Weight | 90-110g/㎡ |
| Handle Cord Diameter | 3-5mm |
| Handle Height | 100mm |
| Machine Speed | 30-180pcs/min |
| Bag Making Speed | 30-150pcs/min |
| Bag Making Speed(with Handle) | 30-120pcs/min |
| Required Compressed Air | More than 0.36m³/min, 0.5-0.8MPa |
| Electrical Specifications | 380V Three-Phase Four-Wire 46kW |
| Machine Weight | 19000kg |
| Machine Dimensions | 15300×6000×2500mm |
