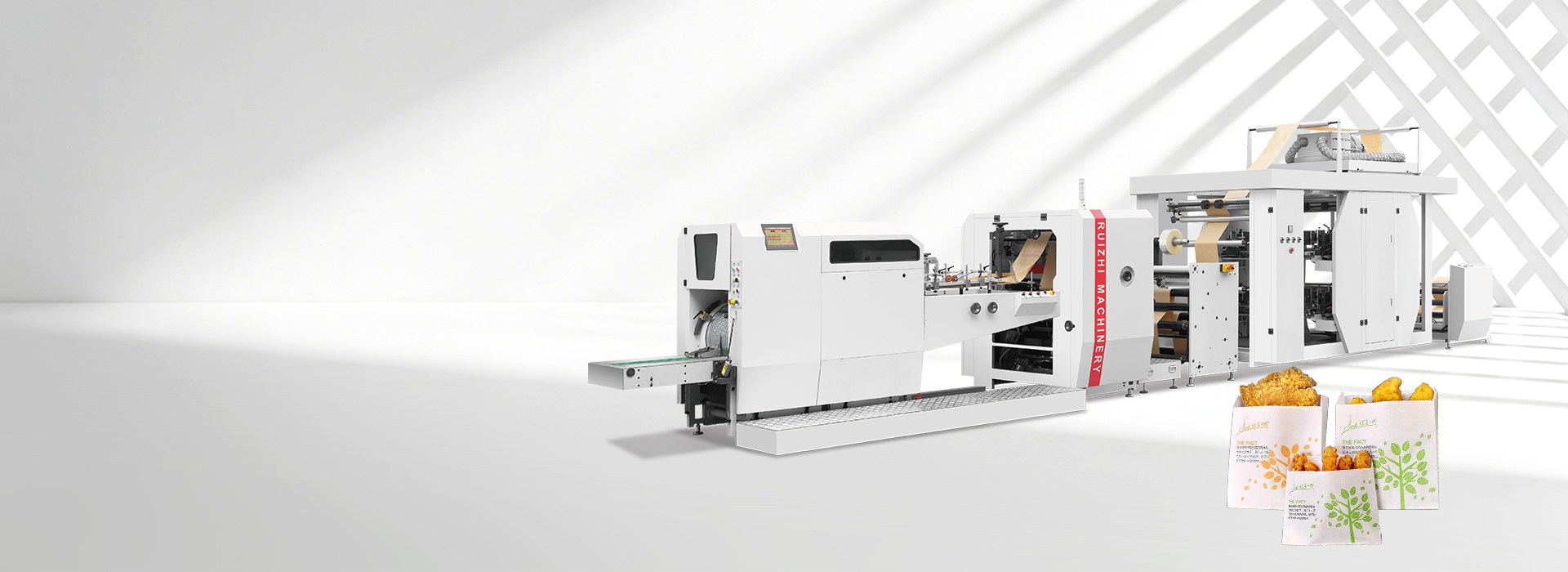

Integrated forming and printing for customized flat bottom paper bags
Ruizhi Machinery flat bottom paper bag machine, committed to international standards,ensures our equipment delivers unparalleled quality and performance, consistently setting the benchmark in the industry.
Ruizhi Machinery flat bottom paper bag machine, with a full-cover safety shield and automatic shutdown alarm, ensures safe operation while protecting the product from external interference.
Ruizhi Machinery flat bottom paper bag machine, with the independent operation and coordination of modules (feeding, pre-punching, and bottom-folding) minimize downtime, streamline production, and ensure fast, efficient paper bag manufacturing.
| Model | RZJD-G350J with Printing Inline |
| Cut-off Length | 165-715mm |
| Bag Length | 160-710mm |
| Bag Width | 70-350mm |
| Gusset Width | 20-120mm |
| Bag Mouth Height | 15/20mm |
| Bag Making Speed | 50-650pcs/min 130m/min |
| Roll Width | 200-920mm |
| Roll Diameter | 1200mm 800KG |
| Core Inner Diameter | 76mm |
| Basis Weight | 35-80g/㎡ |
| Printing Width | 100-1000mm |
| Printing Length | 165-800mm |
| Printing Speed | 10-100m/min |
| Color Accuracy | ≤±0.20mm |
| Required Compressed Air | More than 0.36m³/min, 0.5-0.8MPa |
| Electrical Specifications | 380V Three-Phase Four-Wire 40kW |
| Machine Weight | 9700kg |
| Machine Dimensions | 10800×2800×2500mm |
